    CE Approval 7 Digits Lightning Strike Counter Exchangeable 3V Battery Support

    Ask Lasest Price
    Model Number : TS-SLC3D
    Certification : CE Compliance
    Brand Name : TSTLP
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    CE Approval 7 Digits Lightning Strike Counter Exchangeable 3V Battery Support

    CE approval 7 digits advanced lightning strike counter price - competitive


    TSTLP TS-SLC3D 7-Digit Advanced Lightning Strike Counter is designed for easy mounting on a down conductor (Grounding Line) to effectively count the times of lightning/surge current discharged by ESE thunder arrester or surge protection devices - recording exact TIMES , DATE & TIME. And it does NOT require the use of any external power source.


    • Relative TSTLP Series Lightning Strike Counters

    CE Approval 7 Digits Lightning Strike Counter Exchangeable 3V Battery Support


    CE Approval 7 Digits Lightning Strike Counter Exchangeable 3V Battery Support


    • Technical Data
    TSTLP® Model NrTS-SLC3D
    Power Backup3.0V battery, Type CR123A,Exchangeable
    Min count current> 1.0 kA, rise time 8~10μs
    Sequence of impulse> 1s
    LCD indicator7-digit (0~9999999)
    RecordRecording exact TIMES, DATE & TIME
    Length of Inductive line1m long Twisted-pair
    Length of InductorInductive loop / Flat Inductor(sensor) available
    Service life of battery≥ 2 years (Do NOT pull the transparent Insulated part before use)
    Enclosure materialBlack thermoplastic, UL94-V0
    InstallationMount on 35mm Din rail or inside waterproof case
    Dimension2.2 standard module width
    Working temperature-10°C ~ +55°C
    Relative humidity≤95% (25°C)
    ComplianceCE(EMC, LVD)
    Warranty1.5 year

    • Main Character
    1. 7-digit Display (0~9999999) advanced lightning strike counter
    2. Circel Ring Inductor used with PE line of Power SPD / Flat Inductor used with down conductor of ESE Air Terminal
    3. Powered by replaceable 3.0V Lithium battery, 0 96 inches ,128*64 resolution OLED display.
    4. TS-SLC3D advanced lightning counter could NOT ONLY count the lightning strike TIMES , BUT ALSO record exact DATE & TIME striken at the same time
    • Installation Instructions
    1. There is an insulated transparent tape attached to the battery, pull the tape“Battery on PULL” before installation to ensure the power supply works smoothly.
    2. If Equipped with Inductive Ring: Open the inductive ring and clamp the earthing wire, then fix the SPD on the 35mm DIN rail. As show in the following installation diagram. If Equipped with Flat Inductor: Attach the flat inductor directly with the down conductor of ese lightning rod.
    3. Fault resolution: when the product indicates default,still reset or even no indication, open the bottom enclosure,unplug the internal battery for about 5 minutes and then assemble it back, pay attention to the battery and its holder's positive(+) and negative (-)accordingly. In this condition, it will display and work normally then do the reset(for test).
    • Installation Diagram

    CE Approval 7 Digits Lightning Strike Counter Exchangeable 3V Battery Support

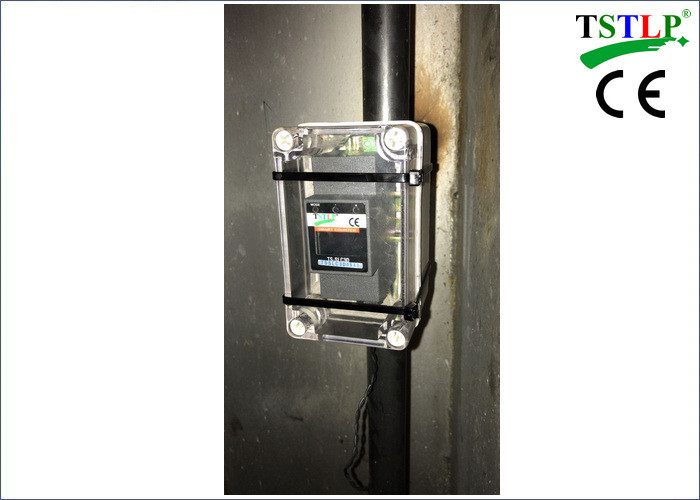

    • Real Installation

    CE Approval 7 Digits Lightning Strike Counter Exchangeable 3V Battery Support


    PDF Datasheet Download - TSTLP TS-SLC3D 7-Digit Ad...
