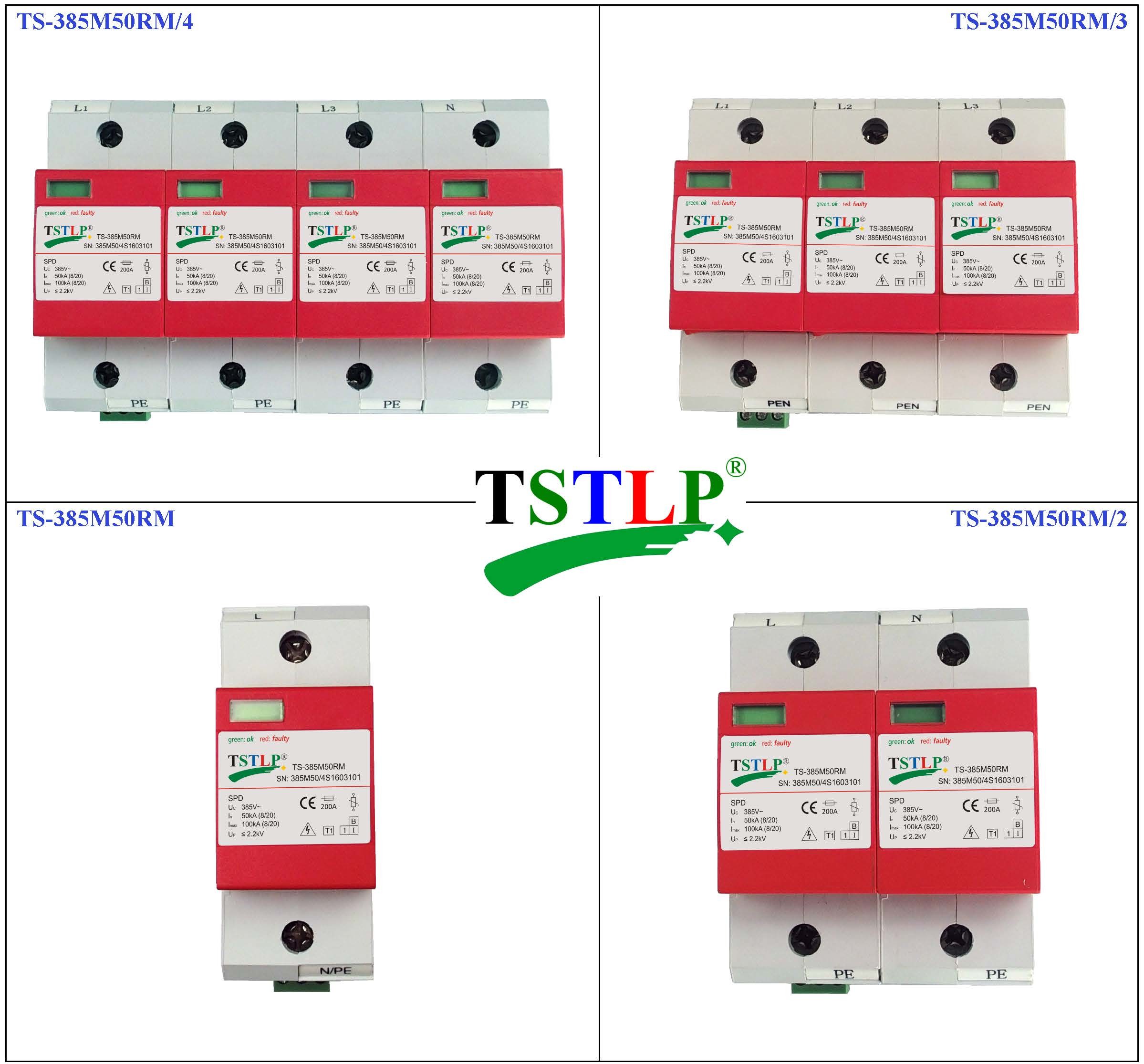

50kA - 100kA power surge suppressor with green / red window indication

50kA ~ 100kA Type 1 power surge suppressor which is designed as per IEC 61643-11 is to protect power distribution-room, distribution-cabinet and other important power supply system... low voltage devices from surge damages

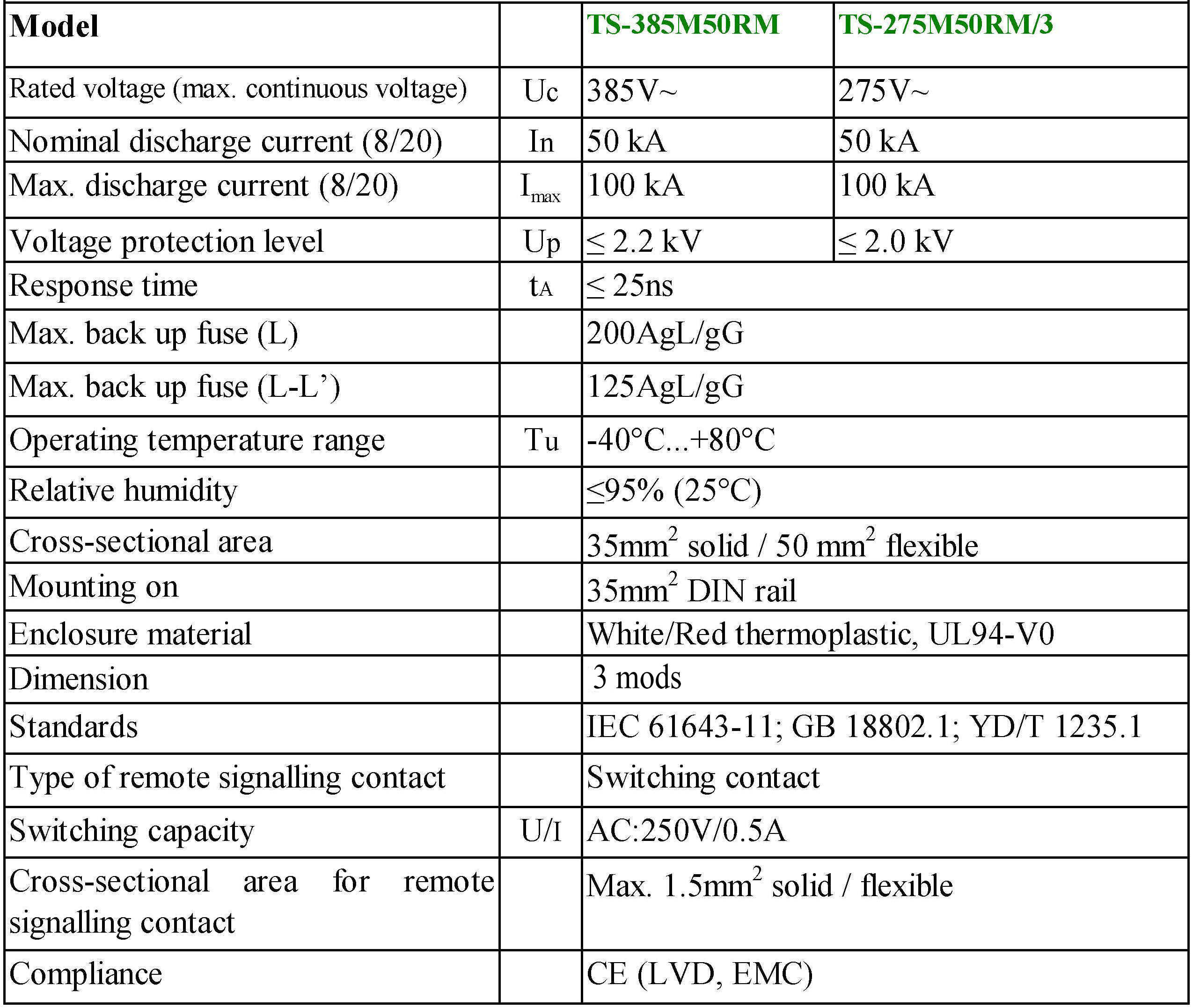

• Technical Specification

• Features

1. Pluggable module, easy for installation and maintenance
2. High discharge capacity, quick response
3. Low residual voltage, fine protection
4. The WINDOW of the power suppressor will display red when fault occurs,remote alarm terminal available.

• Installation Instruction

Fuse must be installed at the upstream of the power surge suppressor or the surge suppressor to make sure that the protected system has double protection. The value of the fuse used in a surge suppression system s/b :

1. The value of FUSE should not be larger than the max withstand capacity of the surge suppressor's backup fuse value.
2. Under the status of the max. current in the power supply & close loop circuit available current, the fuse s/b able to disconnect when overloaded or short-circuited.
3. Take 1 & 2 into consideration, the fuse s/b as large as possible to allow the maximum surge discharge of power surge suppressor.

• Installation Diagram

PDF Catalog Download - TS-385M60-50-40 T1 SPD.pdf

PDF Catalog Download - TS-275M60-50-40RM T1 SPD.pd...

WARNING

1. The power surge suppressor must be installed by electrically skilled person, conforming to national/international standards and safety regulations.
2. Installation s/b done under power off condition.
