    25/37 Pins RS422 / RS485 / RS232 Voltage Surge Suppressor For High Speed Transmission

    Ask Lasest Price
    Model Number : TS-RSP25/37
    Brand Name : TSTLP
    Certification : CE Compliance
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    25/37 Pins RS422 / RS485 / RS232 Voltage Surge Suppressor For High Speed Transmission

    25 / 37 pins RS422 / RS485 / RS232 surge suppressor for high speed transmission


    TSTLP RS232 surge suppressor is made as per IEC 61643-21; GB 18802.21; YD/T 1542. for using at LPZ 2-3 boundary, provide surge protection for RS232, RS422 or RS485 signal devices from damages.


    25/37 Pins RS422 / RS485 / RS232 Voltage Surge Suppressor For High Speed Transmission


    • Technical Parameter S1
    Model No.TS-RSP25TS-RSP37
    Un12V-48V-
    Uc15V-55V-
    In/2.5kA (line-SG)
    In100A (line-SG)3kA (line-SG)
    In100A (SG-PG)
    Imax200A (line-SG)5kA (line-SG)
    Imax200A (SG-PG)
    Up≤24V(line-SG)≤120V (line-PG)
    ≤200V(SG-PG)
    Up≤21V(l ine-SG)≤100V (line-PG)
    ≤90V (SG-PG)
    10 MHz22 MHz (Series impedance per line (R)
    tA≤1ns (line-SG)≤1ns(line-SG) ≤25ns (SG-PG)
    ≤1ns (SG-PG)
    Vs1Mbits/s
    Operating temperature range-40°C...+80°C
    Relative humidity≤ 95% (25°C)
    Protective lines7/SG/PGLine:7/8/25/26/27, PG:12/20/30
    PinningLine: 2/3/4/6/7/8/20, SG: 7 (standby lines disconnected )Line: 7/8/25/26/27 (standby lines disconnected )
    Mounting inD-Sub, 2 threaded screwsD-Sub, 2 threaded screws/35mm Din Rail
    Connection (input / output)D-sub 25 socket/plugD-sub 37 socket/plug

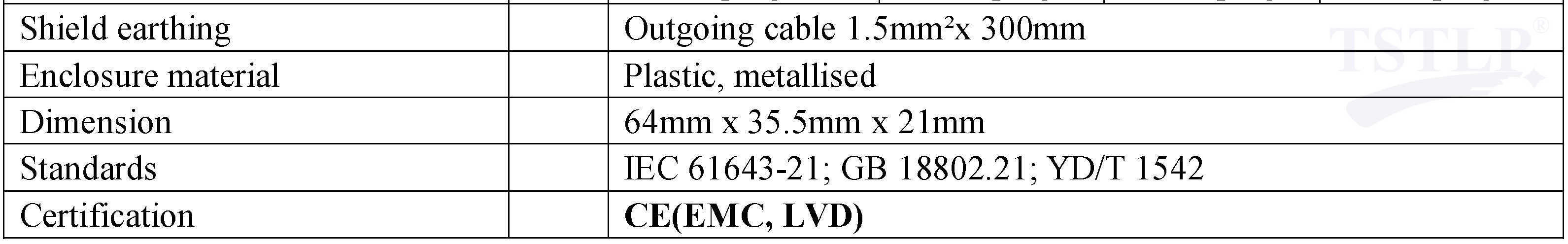

    Technical Parameter S2

    25/37 Pins RS422 / RS485 / RS232 Voltage Surge Suppressor For High Speed Transmission

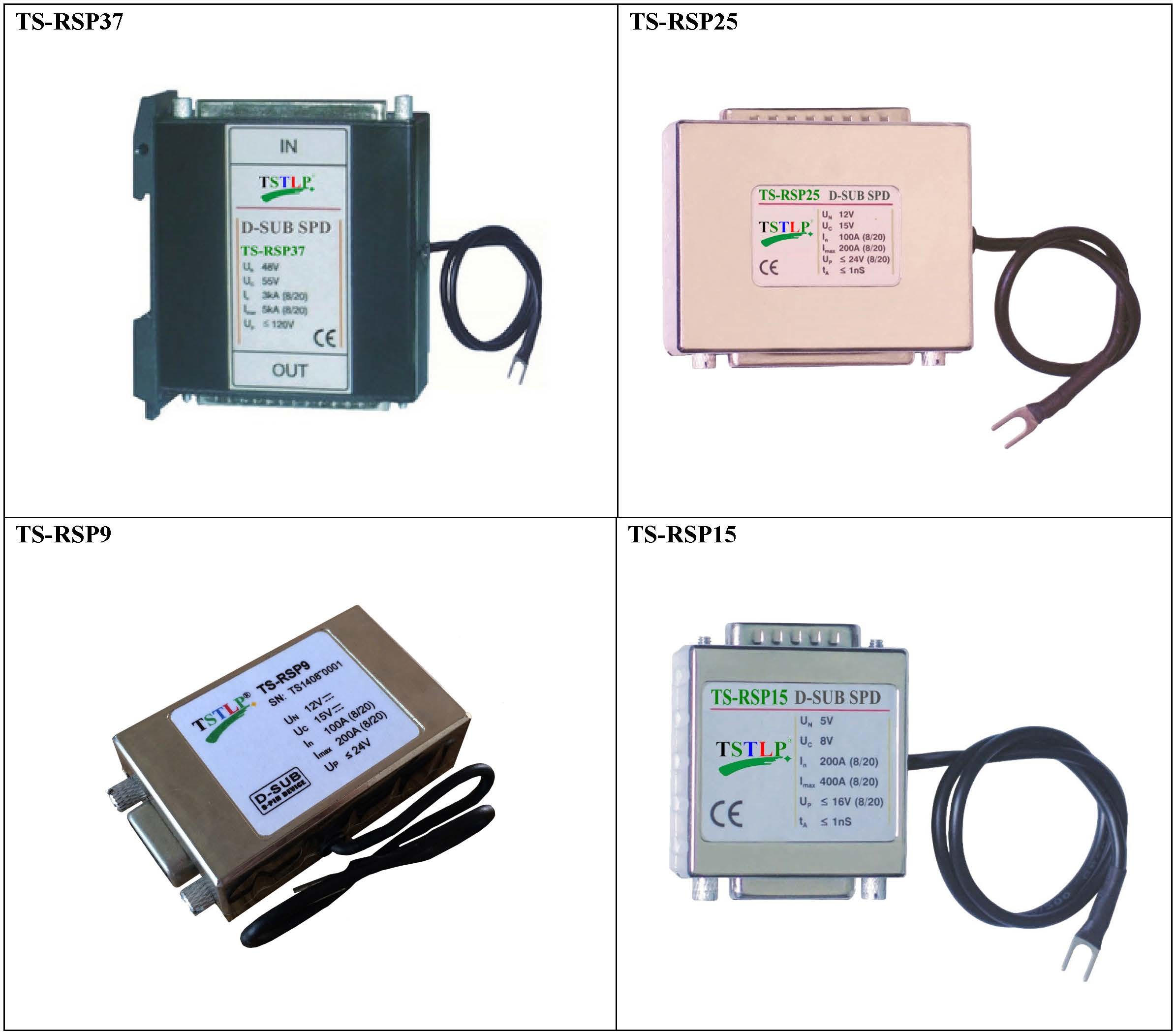

    • Main Character

    25/37 Pins RS422 / RS485 / RS232 Voltage Surge Suppressor For High Speed Transmission


    PDF Catalog Download - TS-RSP Series D-Sub SPD.pdf...
