    TTY / V11 / RS232 / RS485 / RS422 Surge Protection Device Fire Alarm Surge Protection

    Ask Lasest Price
    Model Number : TS-ITS-ME Series
    Certification : CE Compliance
    Brand Name : TSTLP
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    TTY / V11 / RS232 / RS485 / RS422 Surge Protection Device Fire Alarm Surge Protection

    TTY / V11 / RS232 / RS422 / RS485 surge protection devices (RS485 SPD) / fire alarm surge protection


    TS-ITS-ME series surge protection device are applied to the signal control system, such as RS232,RS422, RS485 lightning protection, V11, TTY, video,xDSL, fire alarm surge protection system, flexible to make it to be 2 wires, 3 wires, 4 wires or more wires protection.


    TTY / V11 / RS232 / RS485 / RS422 Surge Protection Device Fire Alarm Surge Protection


    • Technical Specification
    MODELTS-ITS-ME5TS-ITS-ME12TS-ITS-ME15TS-ITS-ME24TS-ITS-ME48TS-ITS-ME110
    Product ApplicationThe series products are applied to the signal control system, such as 4-20mA,RS485,RS422, RS232, V11, TTY, video, xDSL, Fire Alarm System,Audio,flexible to make it to be 2 wires, 3 wires, 4 wires or more wires protection.
    Un5V12V15V24V48V110V
    Up15V25V40V60V85V300V
    In5kA5kA5k A5kA5kA5kA
    Imax10KA10KA10kA10KA10KA10KA
    Series R*(1)*1 Ω1 Ω1 Ω1 Ω1 Ω1 Ω
    Series R*(2)*100μH100μH100μH100μH100μH100μH
    Load current*(3)*400mA400mA400mA400mA400mA400mA
    Trans f( G )(4)*f=25 KHz with L; f=50 MHz with R
    Operating Temperature-40℃~+80℃
    Operating humidity≤95%RH
    If *(1), * (2) is installed, then R=1 Ω, L=100 μH *(3 ) >400 mA, need special making ;
    (4):Max trans Fg

    • Main Character of TS-ITS-ME series for RS232,RS485, RS422 surge protection
    1. Adopting multi-level protection, reasonable between level matching.
    2. Fast response
    3. Precise Clamping, low voltage protection level(low Up),less insertion loss,double over-voltage protection function,making the safety of protected equipment get most securiy.
    4. Modular intergration, installed by 35mm Din Rail.

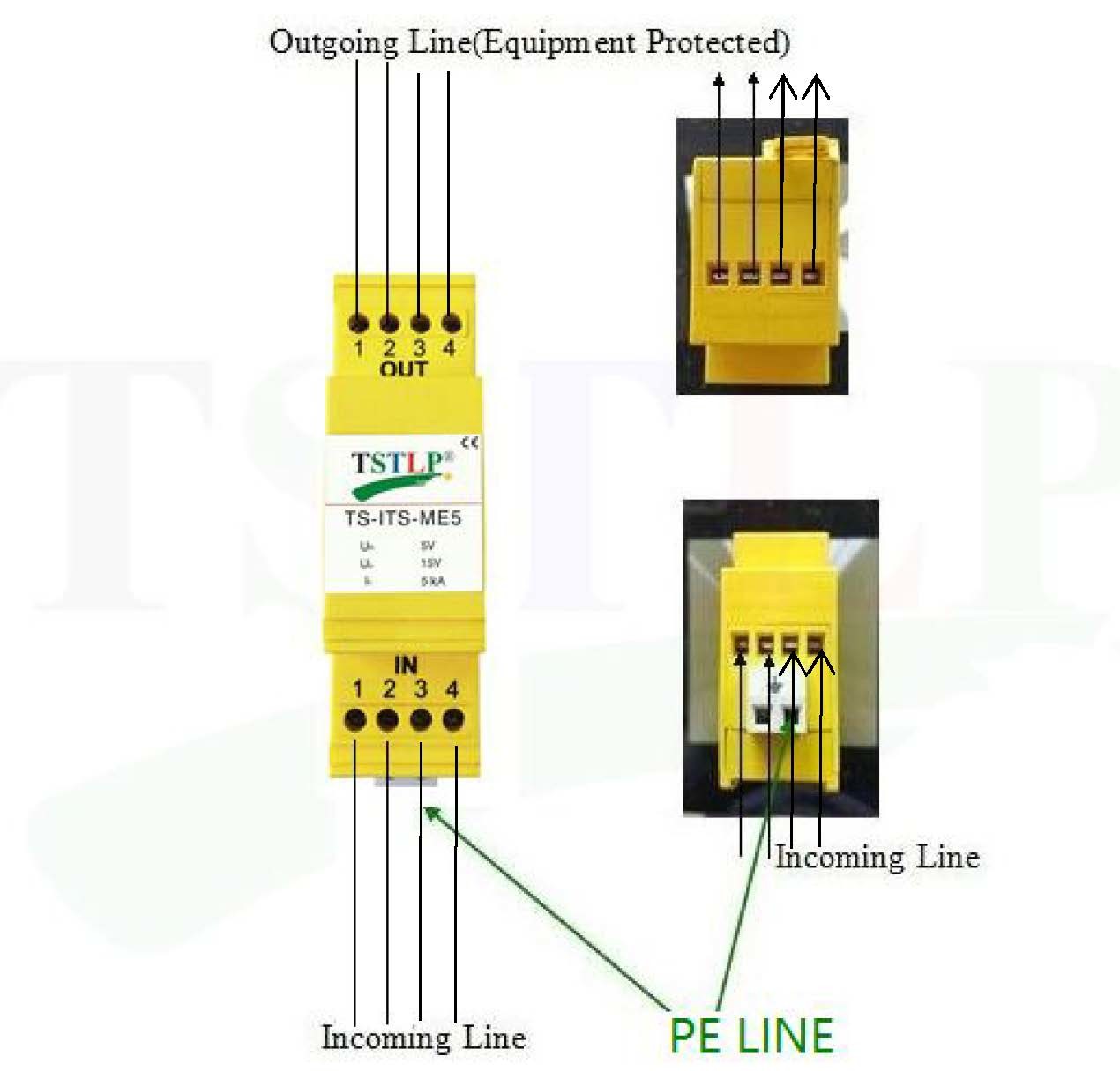

    • Installation Instruction ( 2 wires connection)

    TTY / V11 / RS232 / RS485 / RS422 Surge Protection Device Fire Alarm Surge Protection

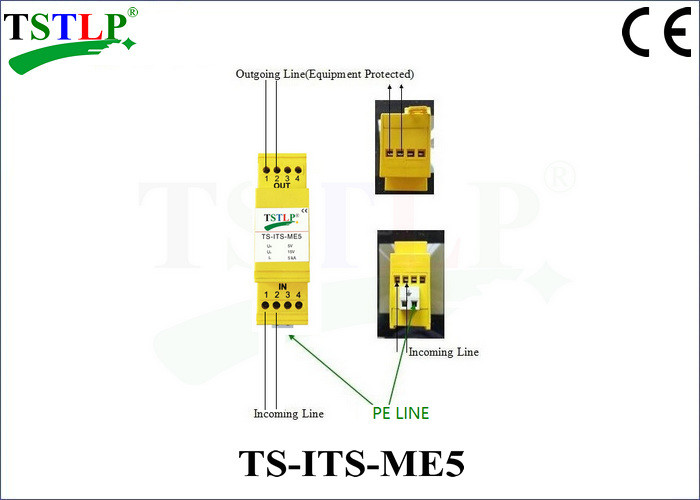

    • Installation Instruction ( 2 wires connection)

    TTY / V11 / RS232 / RS485 / RS422 Surge Protection Device Fire Alarm Surge Protection
