    Field - Bus System Surge Protection Device 100mA / 400mA Providing Fine Protection

    TSTLP Field-bus system / thermal resistor / analog signal surge protection device


    Field - Bus System Surge Protection Device 100mA / 400mA Providing Fine Protection


    TSTLP TS-SD Series analog signal surge protection device is for installation at LPZ 0B -2 or higher, protecting the RS422 / RS485 devices against lightning &surge damages, providing coarse and fine protection. Some Custom-made Technical Data available


    • Technical Data Part 1
    ModelTS-SD5TS-SD24
    Nominal voltageUn5V-24V-
    Rated voltage (max. continuous voltage)Uc6V(line/line) 160V(line/PG,SG/PG)
    6V(line/SG)
    32V(line/line) 160V(line/PG,SG/PG)
    32V(line/SG)
    Nominal discharge current (8/20)In10 KA10 KA
    Max. discharge current(8/20)Imax20 KA20 KA
    Lightning discharge current (10/350)Iimp1KA1KA
    Voltage protection level at 4kV( 1.2/50µS)Up≤25V(line/line)
    ≤800V(line/PG,SG/PG)
    ≤25V(line/SG)
    ≤60V(line/line)
    ≤800V(line/PG,SG/PG)
    ≤60V(line/SG)
    Response timetA≤4ns(line/line)
    ≤20ns(line/PG,SG/PG)
    ≤4ns(line/SG)
    ≤4ns(line/line)
    ≤20ns(line/PG,SG/PG)
    ≤4ns(line/SG)
    Max. load currentIN100mA400mA
    Series impedance per lineR1.5Ω
    CapacitanceC≤300pF(line/line)≤1500pF(line/line)
    ≤100pF(line/PG,SG/PG)≤100pF(line/PG,SG/PG)
    ≤300pF(line/SG)≤1500pF(line/SG)

    Technical Data Part 2

    Field - Bus System Surge Protection Device 100mA / 400mA Providing Fine Protection


    • Main Character of TS-SD analog signal surge protection device
    1. Small size, only 7mm wide module
    2. Connected to earth by DIN rail or earthing terminal
    3. With shield terminal(direct or indirect to earth)

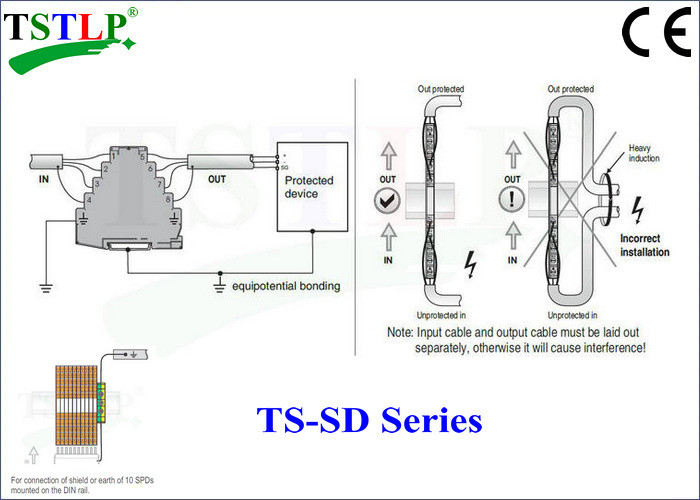

    • Installation Instruction

    Field - Bus System Surge Protection Device 100mA / 400mA Providing Fine Protection
