    Power 5v - 220v Surge Protector For Cctv Camera Security Camera Surge Protection

    Ask Lasest Price
    Model Number : TS-VCP2
    Certification : CE Compliance
    Brand Name : TSTLP
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    Power 5v - 220v Surge Protector For Cctv Camera Security Camera Surge Protection

    Power 5v - 220v , control 12v , video 5v security camera surge protection

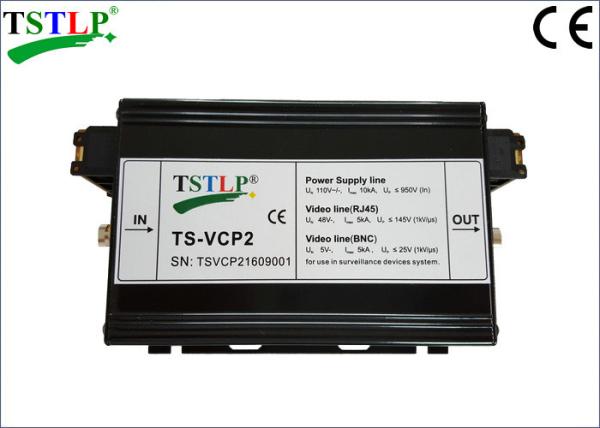

    TS-VCP2 2 in 1 security camera surge protection is for protection of power lines & video lines of surveillance devices from surge damages, such as surveillance video receiver and camera etc. And it's widely applied in bank surveillance systems(CCTV system), residential security systems,surveillance devices or school security corporation & roads


    • Technical Spec 1 of TS-VCP2 2 in 1 surge protector
    Model NrTS-VCP2
    Protection linesVideo Line (BNC)Video Line (RJ45) for optionPower Supply line
    Un5V-48V-220V-48V-24V-12V-
    Iimp0.5KA0.5KA------------
    In2.5KA(line-shield)2.5KA (line-shield)5KA5KA5KA5KA
    5KA (shield-PG)5KA (shield-PG)
    Imax5KA (line-shield)5KA (line-shield)10KA10KA10KA10KA
    10KA (shield-PG)10KA (shield-PG)
    Up≤25V (line- shield)≤130V(line- shield)≤950V≤450V≤300V≤240V
    ≤25V (shield-PG)≤130V (shield-PG)(L-N)(L-N)(L-N)(L-N)
    Up≤25V (line- shield)≤145V(line-shield)------------
    ≤25V (shield-PG)≤145V (shield-PG)
    tA≤1ns (line- shield)≤1ns (line- shield)≤25ns≤25ns≤25ns≤25ns
    ≤100ns (shield-PG)≤100ns (shield-PG)
    fG10MHz165MHz------------
    Vs16Mbits/s100Mbits/s------------
    Series impedance------------------
    Insertion lose0.4dB0.4dB------------
    Connection (input/output)BNC socket/plugRJ45 socket/plugScrew

    Technical Spec 2

    Power 5v - 220v Surge Protector For Cctv Camera Security Camera Surge Protection

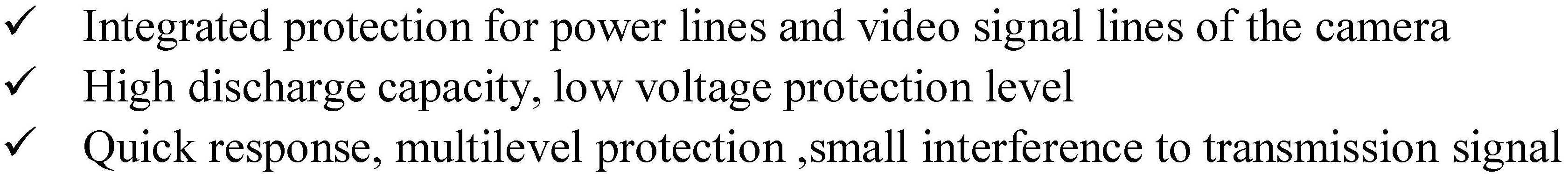

    • Character

    Power 5v - 220v Surge Protector For Cctv Camera Security Camera Surge Protection


    • Installation Diagram for reference

    Power 5v - 220v Surge Protector For Cctv Camera Security Camera Surge Protection


    PDF Catalog Download - TS-VCP2 2 in 1 SPD.pdf


    PDF Catalog Download - TS-VCP3 3 in 1 SPD.pdf


    PDF Catalog Download - TS-VCP3N 3 in 1 SPD.pdf
