    Hazardous Area Surge Protection Equipment For 4-20mA Measuring Control And Bus System

    Ask Lasest Price
    Brand Name : TSTLP
    Model Number : TS-EX24
    Certification : CE Compliance
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    Hazardous Area Surge Protection Equipment For 4-20mA Measuring Control And Bus System

    Hazardous area surge protection device for 4-20mA measuring control & bus system


    Installed at LPZ OB-2 or higher inside the control equipment, the built-in cable connected with the control equipment’s wiring terminal. TS-24 hazardous area surge protection device is available to apply in intrinsically safe circuit in hazardous areas and 4-20mA measuring control system and bus system.


    • Technical Data of TS-EX24 Hazardous area surge protection equipment
    Model NumberTS-EX24
    Normal VoltageUn24V-
    Rated voltage (max. continuous voltage)Uc

    32V-

    22.6V ~

    Lightning impulse current (10/350)Iimp1.5kA
    Normal currentIL0.55A
    Nominal discharge current (8/20)In10kA (per line); 10kA(total)
    Voltage protection level at InUp≤ 58V (line/line); ≤ 1700V (line/PG)
    Voltage protection level at 1kV/μsUp≤ 50V (line/line); ≤ 1200V (line/PG)
    BandwidthfG67MHz
    CapacitanceC≤ 25pF (line/line); ≤ 15pF (line/PG)
    Operating temperature range-40 0C ~ +80 0C
    Mounting inM20 x 1.5 screws
    Connection (input / output)1.3 mm x 250mm length of the connecting lead
    Earthing viaConnecting lead
    Enclosure materialStainless steel case
    ComplianceIEC-61643-21, GB18802.21, YD/T 1542

    • MAIN CHARACTER
    1. Small & easy replacement.
    2. Easy to install inside the control equipment.
    3. Stainless steel housing, fireproof & explosion-proof outdoor use.

    Installation Instruction

    • Screwing into the wiring port of the control equipment directly
    • Blue wire connecteed with signal port “+”, Black Wire connected with signal port “-”
    • Yellow / Green wire connect with grounding port “GN” of grounding system.
    • After installation, check if commuication is be operating normally.

    Regularly inspect the operating status, especially after lightning. Once the communication is off, electrician should check/replace the SPD.

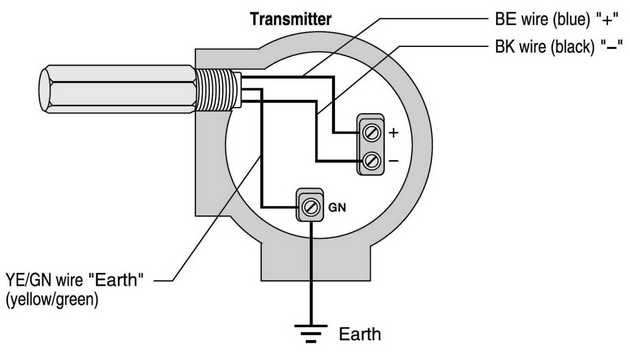

    INSTALLATION DIAGRAM

    Hazardous Area Surge Protection Equipment For 4-20mA Measuring Control And Bus System


    WARNING:

    • The hazardous area surge protection device must be installed by electrically skilled person, conforming to national standards and safety regulations.
    • It is recommended that installation should be done under power off condition.

    PDF Catalog Download - TS-EX24 SPD for Hazardous ...
