Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney

    Buy cheap Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney from wholesalers

    Buy cheap Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney from wholesalers
    • Buy cheap Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney from wholesalers
    • Buy cheap Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney from wholesalers
    • Buy cheap Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney from wholesalers
    • Buy cheap Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney from wholesalers

    Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney

    Ask Lasest Price
    Brand Name : TSTLP
    Model Number : SMT-ESE50
    Certification : CE approval / Patent
    Price : Negotiable if good quantity
    Delivery Time : Around 6 working days upon receipt of payment
    Payment Terms : Full TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash in advance
    Supply Ability : 1,000 sets/month
    • Product Details
    • Company Profile

    Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney

    Rustproof TSTLP ESE Air terminal lightning rod protection for homes / barn / villa / chimney / hospital / Open Area - Golf / roof / boat / camping / trees / tent / building...


    Approved TSTLP Captured Air Terminal lightning rod (protection) referring to the French standard NF C 17-102 version 2011 enjoy wider radius protection for the sites

    Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney


    • TSTLP SMT-ESE50 Air Terminal Lightning Rod Technical Data

    TSTLP® modelsSMT-ESE50
    Patent RightAvailable
    (ΔT μs )50
    Standard Deviation ESE / Single Rod σσESE < 0.5 σPTS
    Lightning current withstanding test Iimp100,000A (normative test at 10/350μs waveform as standard requires)
    Lightning current withstanding Iimp (10/350μs)≥ 200kA
    Capacity against wind speed≥40 meter/second
    Dimension(Length:mm)408
    Approx net weight (kg)3.8
    Enclosure materialQualifed 304 Stainless Steel
    Ref standardsFrench NF C 17-102_2011 Annexe C
    Spanish UNE 21.186:2011 Paragraph C
    IEC 60060-1:2010 Part 1
    Europe EN 60060-1:2010
    China National GB/T T16927.1-2011 Part 1;

    SMT-ESE50 ESE Air Terminal Lightning Rod Protection - OPERATING PRINCIPLES
    Detection of download leaderContinuous measuring of electric field gradient (ΔE/Δt)
    Upward streamer development conditionsSMART Technology optimizing the streamer development conditions
    Upward streamer emissionSparking by High Voltage Impulses
    Internal circuits4 Independent working unit
    Central rodFull electrical continuity
    Metal housingSuperior 304 Stainless Steel
    On-site testing capabilitiesProprietary ESE Air Terminal Lightning Rod Tester
    Yearly MaintenanceFree (thanks to our advanced technology & qualifed material)
    Warranty Period120 months

    Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney

    • Radius Protection Table of SMT-ESE50 Air Terminal Lightning Rod (Protection)

    Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney


    • ESE Air terminal Lightning Rod Protection For Homes, Buildings...

    Installation procedure for TSTLP ESE Air terminal Lightning Rod is governed by NF C 17-102 standard and follows a series of simple rules catering for all types of structure


    Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney


    ① TSTLP ESE Lightning Arrester

    ② Elevation pole

    ③ Copper conductor

    ④ Copper clamp

    ⑤ TSTLP Lightning counter

    ⑥ Test clamp

    ⑦ Earth clamp

    ⑧ Protection sheath

    ⑨ Inspection housing

    ⑩ Copper earthing

    ⑪ Rod to conductor clamp

    ⑫ Earth rod


    • Order & Packing

    Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney

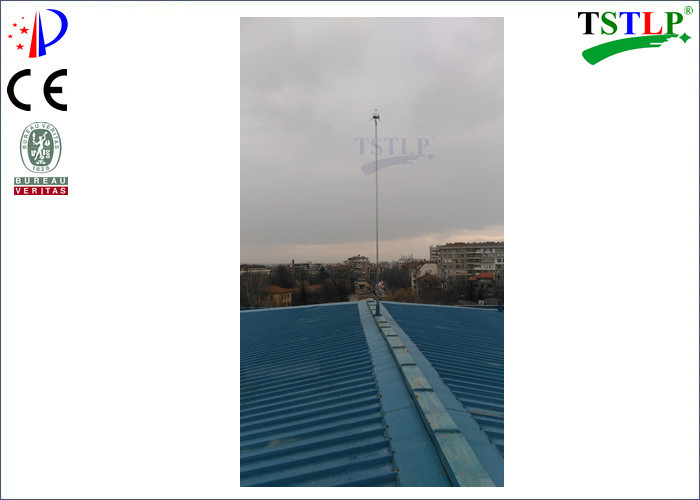

    • TSTLP ESE Air Terminal Lightning Rod Protection for home, villa... Installation Photo

    Rustproof Air Terminal Ese Lightning Arrester For Homes / Barn / Villa / Chimney


    Download PDF 2020 TSTLP ESE Lightning Arrester Catalog @ http://www.ese-lightningrod.comhttps://drive.google.com/file/d/1kEW-pWdJdlArVgfrHutq62k9HsVNcHq-/view?usp=sharing​


    PDF Datasheet DOWNLOAD - TSTLP SMT-ESE50.pdf


    Tag: air terminal lightning rod, lightning rod protection, lightning rod protection for homes
