    Stainless Steel Case Lightning Surge Protector Explosion Proof On Hazardous Area

    Ask Lasest Price
    Brand Name : TSTLP
    Model Number : TS-EX24
    Certification : CE Compliance
    Price : Negotiable if good quantity
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    Delivery Time : Around 7 working days upon receipt of payment
    • Product Details
    • Company Profile

    Stainless Steel Case Lightning Surge Protector Explosion Proof On Hazardous Area

    Stainless Steel Case Explosion Proof Surge Protector For Hazardous Area


    Description: Installed at LPZ OB-2 or higher inside the control equipment, the built-in cable connected with the control equipment’s wiring terminal. TS-24 explosion proof surge protector is available to apply in intrinsically safe circuit in hazardous areas and 4-20mA measuring control system and bus system.


    Technical Data:

    ModelTS-EX24
    Normal VoltageUn24V-
    Rated voltage (max. continuous voltage)Uc

    32V-

    22.6V ~

    Lightning impulse currentIimp1.5kA ((10/350)
    Normal currentIL0.55A
    Nominal discharge currentIn10kA (per line); 10kA(total) @ (8/20)
    Voltage protection level at InUp≤ 58V (line/line); ≤ 1700V (line/PG)
    Voltage protection level at 1kV/μsUp≤ 50V (line/line); ≤ 1200V (line/PG)
    BandwidthfG67MHz
    CapacitanceC≤ 25pF (line/line); ≤ 15pF (line/PG)
    Operating temperature range-40 0C ~ +80 0C
    Mounting inM20 x 1.5 screws
    Connection (input / output)1.3 mm x 250mm length of the connecting lead
    Earthing viaConnecting lead
    HousingStainless steel case
    Comply withIEC-61643-21, GB18802.21, YD/T 1542

    MAIN CHARACTER

    • Small & easy replacement.
    • Easy to install inside the control equipment.
    • Stainless steel housing, fireproof & explosion-proof outdoor use.

    Installation Guide

    • Screwing into the wiring port of the control equipment directly
    • Blue wire connecteed with signal port “+”, Black Wire connected with signal port “-”
    • Yellow / Green wire connect with grounding port “GN” of grounding system.
    • After installation, check if commuication is be operating normally.

    Regularly inspect the operating status, especially after lightning. Once the communication is off, electrician should check/replace the surge protector.

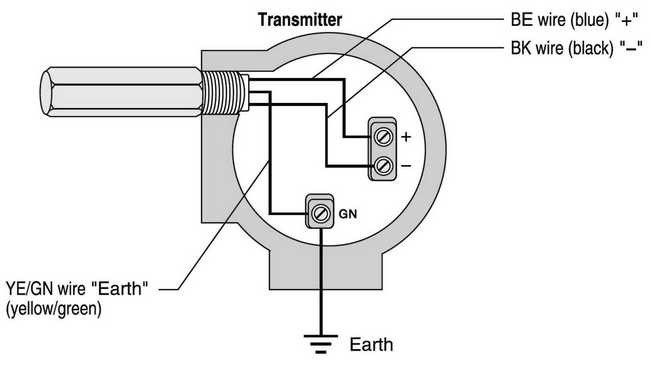

    INSTALLATION DIAGRAM for reference

    Stainless Steel Case Lightning Surge Protector Explosion Proof On Hazardous Area


    WARNING TIPS:

    1. The explosion proof surge protector must be installed by electrically skilled person, conforming to national standards and safety regulations.
    2. It is strongly recommended that installation should be done under power off condition.

    PDF Catalog Download - TS-EX24 SPD for Hazardous ...
