Oversea tested early streamer emission types of lightning conductors on building

• Key Features

• Official High-Voltage Test regarding TSTLP SMT-ESE60 Early Streamer Emission Time

• Technical Parameter of TSTLP SMT-ESE60 ESE lightning conductor

• SMT-ESE60 Types of Lightning Coonductors Radius Protection Table as per level 1 ~ level 4

Max Radius Protection of SMT-ESE60 early streamer emission lightning conductor :

Level 1: 80m radius protection.

Level 2: 90m radius protection.

Level 3: 105m radius protection.

Level 4: 120m radius protection.

MP4 FLASH of TSTLP ESE Type of Lightning Conductor VS Ordinal Conductor ZONE of PROTECTION, check/download @ https://drive.google.com/file/d/1oluGnqguWksS9eEWPnKvk4PTSCxHQQkh/view?usp=sharing

• ESE Types of lightning conductors Protection of high rise buildings (height greater than 60 m)

Additional protection against direct lightning strike for the highest 20% of the structure height for buildings greater than 60 m or any point above 120 m, using ese types of lightning conductor or any other means must be implemented at each façade wall according to a valid standard. Furthermore a minimum of 4 Down conductors, interconnected by a ring conductor when applicable, shall be used, distributed along the perimeter and if possible at each angle of the building.

NOTE: in general the risk due to the lateral flashes is low because only a few percent of all flashes to tall structures will be to the side and moreover their parameters are a lot lower than those of flashes to the top of structures.

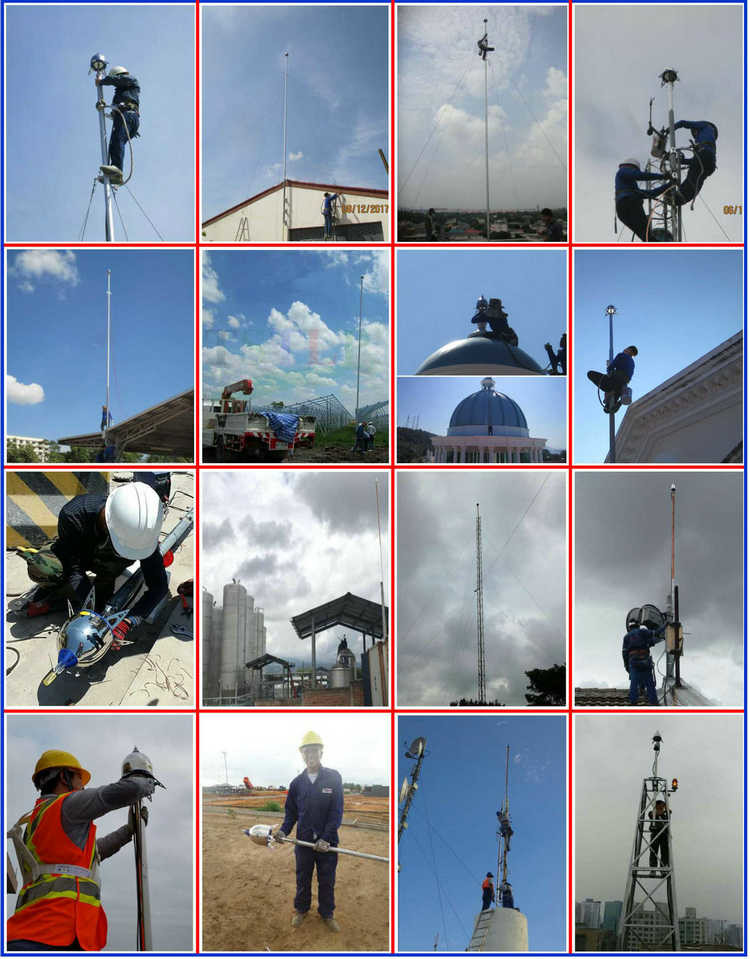

• Part of TSTLP ese lightning conductors on building... overseas installation Ref.

Download PDF 2020 TSTLP ESE Lightning Conductor Catalog @ http://www.ese-lightningrod.comhttps://drive.google.com/file/d/1kEW-pWdJdlArVgfrHutq62k9HsVNcHq-/view?usp=sharing

PDF Datasheet DOWNLOAD - TSTLP SMT-ESE60.pdf

Tag: types of lightning conductors, lightning conductors on building
