    Active Early Streamer Emission Lightning Arrester SMT-ESE60 For Building

    Ask Lasest Price
    Brand Name : TSTLP
    Model Number : SMT-ESE60/SLC3D
    Certification : CE Approved / Test Reports / Patent Right
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 1000 pcs/month
    • Product Details
    • Company Profile

    Active Early Streamer Emission Lightning Arrester SMT-ESE60 For Building

    TSTLP SMT-ESE60 early streamer emission lightning arrester installation for building


    • Main Benefits
    1. Patent listed
    2. Authorized Tests at HOME & INTERNATIONAL approved High-Voltage Labs according to French NF C 17-102:2011 Annexe C standards to assure high quality.
    3. TSTLP SMT-ESE60 Early Streamer Emission lightning arrester only becomes active when electrical field intensity rises(lightning discharge likely), TSTLP Early Streamer emission lightning arrester presents no danger to the sites.
    4. Complete reliability, even in extreme climatic conditions
    5. Robust to withstand much lightning strikes.
    6. Durable quality enjoys Free-Maintenance.
    7. Latest ISO 9001:2015 Manufacturing Process

    Active Early Streamer Emission Lightning Arrester SMT-ESE60 For Building


    Active Early Streamer Emission Lightning Arrester SMT-ESE60 For Building

    Active Early Streamer Emission Lightning Arrester SMT-ESE60 For Building


    Flash Video - TSTLP Early Streamer Emission Lightning Arrester VS Simple Franklin Rod's Efficiency & Protection Cover Range, check/download it @ http://www.ese-lightningrod.comhttps://drive.google.com/file/d/15oOYFghuehiJydeSsQ-efLOOQmyVGyQX/view?usp=sharing


    • Datasheet
    LogoTSTLP
    Early Streamer Emission Lightning ArresterSMT-ESE60
    Patent Right Number2013300191382
    Delta T60μs
    Lightning current withstanding test Iimp (10/350μs)100kA (normative test as per standard)
    Lightning current withstanding Iimp≥ 200kA (10/350 μs)
    Capacity against wind speed≥40 meter/second
    Dimension(Length: mm)408
    Approx net weight (kg)4
    Enclosure materialHigh Quality SS
    Test StandardsNF C 17-102:2011 Annexe C standard
    UNE 21.186:2011 Paragraph C standard
    IEC 60060-1:2010 Part 1 standard & IEC 62305
    EN 60060-1:2010 standard
    GB/T T16927.1:2011 Part 1 standard
    H.S. Code8535400000

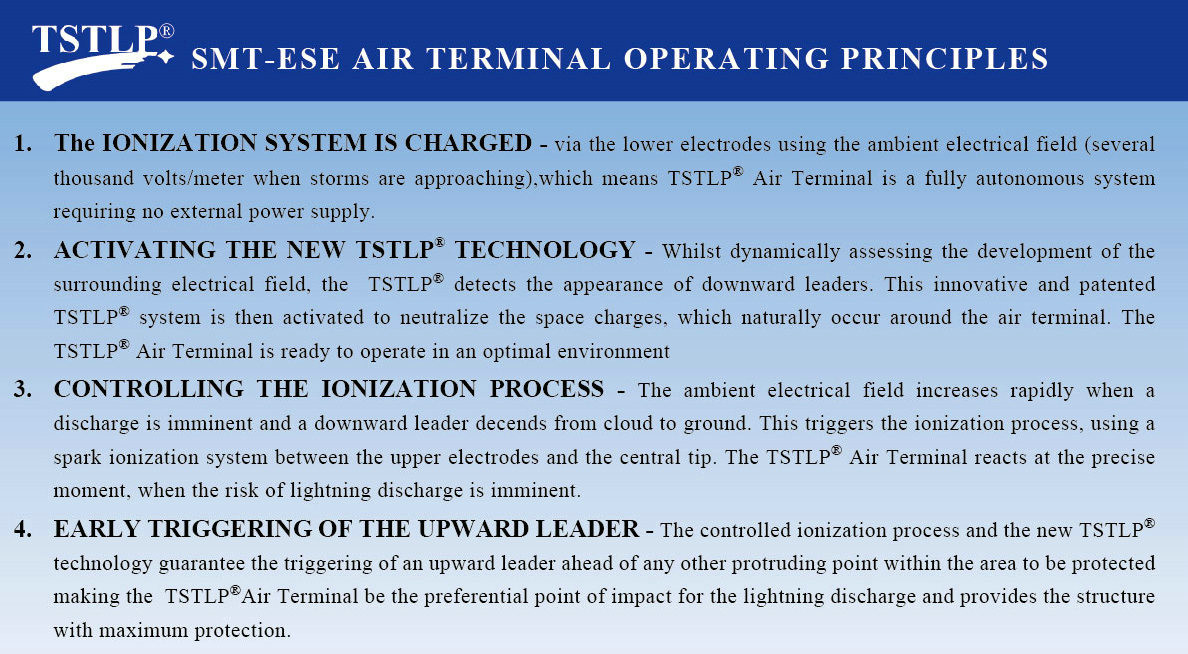

    OPERATING PRINCIPLES - SMT-ESE60 early streamer emission lightning arrester
    Detection of download leaderContinuous measuring of electric field gradient (ΔE/Δt)
    Upward streamer development conditionsTSTLP®-ESE Technology optimizing the streamer development conditions
    Upward streamer emissionSparking by High Voltage Impulses
    Internal circuits6 Independent working unit
    Central rodFull electrical continuity
    Metal housingSuperior 304 Stainless Steel
    On-site testing capabilitiesProprietary early streamer emission lightning arrester tester
    MaintenanceFree (thanks to TSTLP-Smart technology & High-Quality material)
    Guarantee10 years

    • Radius Protection of SMT-ESE60 Early Streamer Emission Lightning Arrester as per different levels
    Protection LevelLevel 1Level 2Level 3Level 4
    (99%, D=20m)(97%, D=30m)(91%, D=45m)(84%, D=60m)
    TSTLP® ModelSMT-ESE60
    Delta T (ΔT)60μs
    h(m)RADIUS PROTECTION (m)
    232343943
    347525864
    463697886
    5798697107
    6798797107
    8798798108
    10798899109
    128088100110
    208089102113
    30/90104116
    45//105119
    60///120

    • TSTLP ese lightning arrester installation for building, open areas...

    Active Early Streamer Emission Lightning Arrester SMT-ESE60 For Building


    Download PDF 2020 TSTLP Early Streamer Lightning Arrester Catalog @ http://www.ese-lightningrod.comhttps://drive.google.com/file/d/1kEW-pWdJdlArVgfrHutq62k9HsVNcHq-/view?usp=sharing​


    PDF Datasheet Download - TSTLP SMT-ESE60.pdf


    Tag: early streamer emission lightning arrester, lightning arrester installation, lightning arrester installation for building
