    Reliable Single Phase Voltage Surge Protector , In 100ka Surge Protection Device

    Ask Lasest Price
    Model Number : TS-385B25RM/2
    Certification : CE Compliance
    Brand Name : TSTLP
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    Reliable Single Phase Voltage Surge Protector , In 100ka Surge Protection Device

    More Reliable Single phase type 1 100ka surge protector for sale


    TSTLP series 100kA surge protector designed according to IEC 61643-11 is for installation at LPZ 0A -1 or higher, protecting low voltage equipment against lightning and surge damages. Applied in surge protector Class B for various power supply system.


    Reliable Single Phase Voltage Surge Protector , In 100ka Surge Protection Device


    • Technical Data S1
    Model NumberTS-385B25RM/2TS-385B25RM/2
    TS-385B25RMTS-385B25RM
    Rated voltage (max. continuous voltage)385 VAC~385 VAC~
    Lightning impulse current (10/350)25 kA25 kA75 kA (N-PE)
    Nominal discharge current (8/20)100 kA100 kA
    Max. discharge current (8/20)120 kA120 kA
    Voltage protection level≤ 2.5 kV≤ 2.5 kV≤ 2.2 kV

    Technical Data S2

    Reliable Single Phase Voltage Surge Protector , In 100ka Surge Protection Device


    • Main Character
    1. 100kA surge protection device for TN / TT system
    2. GDT technology, high follow current extinguish capability
    3. Double thermal disconnection device , provide more reliable protection
    4. Window will display red when fault occurs,remote alarm terminal at the same time

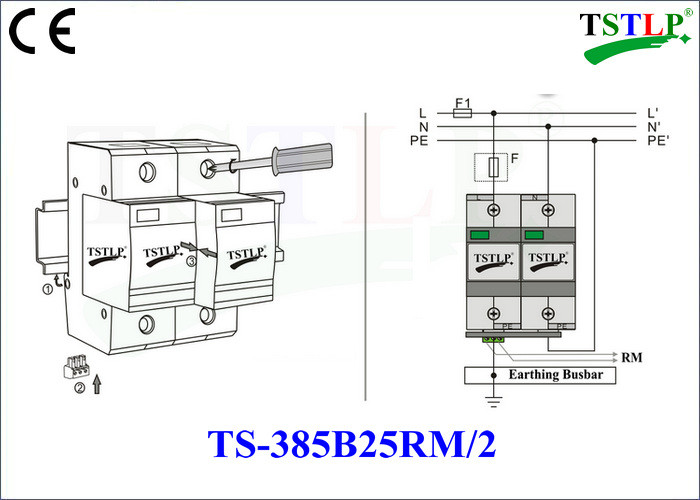

    • Installation Diagram for reference

    Reliable Single Phase Voltage Surge Protector , In 100ka Surge Protection Device


    PDF Catalog Download - TS-385B25RM T1 SPD.pdf


    PDF Catalog Download - TS-255B25RM T1 SPD.pdf
