    Computer Equipment Lightning Surge Protector D SUB 9 / 15 Pins RS485 / RS422 / RS232

    Ask Lasest Price
    Model Number : TS-RSP9 / 15
    Certification : CE Compliance
    Brand Name : TSTLP
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    Computer Equipment Lightning Surge Protector D SUB 9 / 15 Pins RS485 / RS422 / RS232

    D-SUB 9 / 15 pins RS485 / RS422 / RS232 surge protector for computer equipment


    TS-RSP series RS232 surge protector for computer equipment is used at LPZ 2-3 boundary, provide surge protection for RS485, RS422 or RS232 signal devices from damages, such as surge voltages, operating over voltages, electrostatic discharging and so on according to IEC 61643-21 standard.


    Computer Equipment Lightning Surge Protector D SUB 9 / 15 Pins RS485 / RS422 / RS232


    • Technical Data S1
    ModelTS-RSP9TS-RSP15
    Nominal voltage12V-5V-
    Rated voltage (max. continuous voltage)15V-8V-
    Lightning impulse current (10/350)//
    Nominal discharge current (8/20)100A (line-SG)200A (line-SG)
    Nominal discharge current (8/20)100A (SG-PG)800A (SG-PG)
    Max. discharge current (8/20)200A (line-SG)400A (line-SG)
    Max. discharge current (8/20)200A (SG-PG)1.3kA (SG-PG)
    Voltage protection level at In≤24V (line-SG)≤16V (line-line)
    ≤200V (SG-PG)≤16V (line-SG)
    ≤16V (SG-PG)
    Voltage protection level at 1kV/ms≤21V (l ine-SG)≤11V (line-line)
    ≤90V (SG-PG)≤11V (line-SG)
    ≤11V (SG-PG)
    Bandwidth10 MHz4 MHz
    Response time≤1ns (line-SG)≤1ns (line-SG)
    ≤1ns (SG-PG)≤1ns (SG-PG)
    Max. data transmission rates1Mbits/s
    Operating temperature range-40°C...+80°C
    Relative humidity≤ 95% (25°C)
    Protective linesLine: 8/ SG/PG2 two-core lines
    PinningLine: 1/2/3/4/6/7/8/9, SG: 5 (standby lines disconnected)2/9 1st pair; 4/11 2nd pair; 8:SG: 1:PG (standby lines disconnected )
    Mounting inD-Sub, 2 threaded screws
    Connection (input / output)D-sub 9 socket/plugD-sub 15 socket/plug

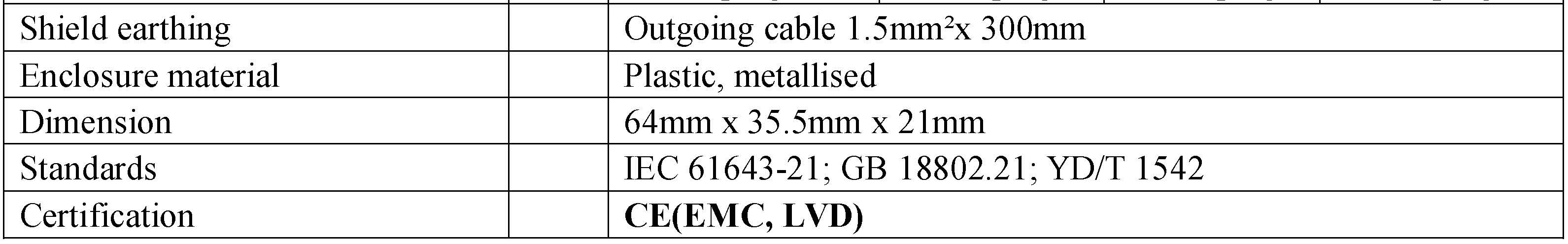

    Technical Data S2

    Computer Equipment Lightning Surge Protector D SUB 9 / 15 Pins RS485 / RS422 / RS232


    • Features
    1. High discharge capacity, low voltage protection level, quick response
    2. Do not impact the normal work of data management devices and system
    3. Apply for high speed transmission devices
    • Installation Instruction
    1. This RS485 / RS422 / RS232 surge protector for computer equipment is connected in series to the protected device, installation in the partition of LPZ 2-3 interface;
    2. In order to prevent lightning induction, LPZ 0A -1 and LPZ 1-2 interface must install additional surge protection products.
    3. The out terminal of the surge protector s/b connected to the protected devices.
    4. SPD's earthing lead must be connected to nearby earthing BusBar or the metal earthing enclosure of protected device.
    5. After above, you should ensure the circuit is functioning.
    • Installation Diagram Reference

    Computer Equipment Lightning Surge Protector D SUB 9 / 15 Pins RS485 / RS422 / RS232


    PDF Catalog Download - TS-RSP Series D-Sub SPD.pdf...
