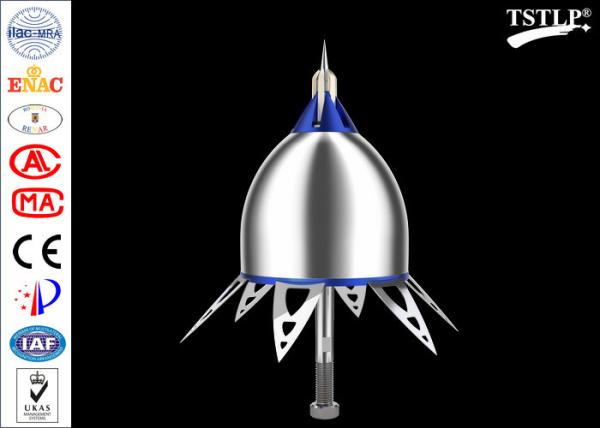

    Durable Ese Air Terminal 120m Max Radius Protection Stainless Steel Metal Housing

    Ask Lasest Price
    Brand Name : TSTLP
    Model Number : SMT-ESE60/P
    Certification : Patent Right / CE / Authorized Test Reports
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 1000 pcs/month
    • Product Details
    • Company Profile

    Durable Ese Air Terminal 120m Max Radius Protection Stainless Steel Metal Housing

    TSTLP More durable Ese lightning air terminal installation for different buildings


    SMT-ESE60 lightning air terminal Key Benefits

    • Patent available

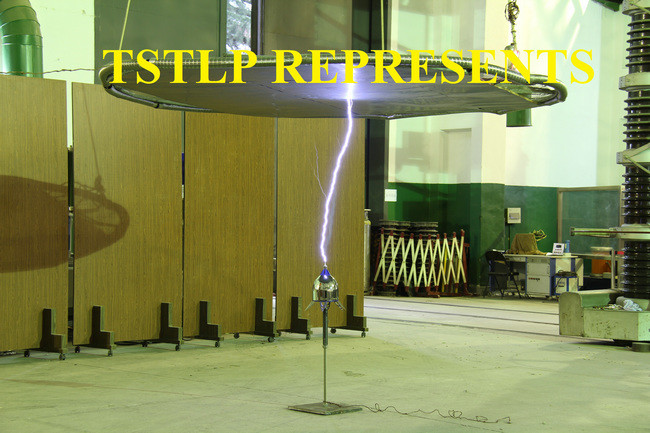

    • Successfully tested according to NF C 17-102:2011 Annexe C & UNE 21.186:2011 Paragraph C at ACCREDITED High-Voltage Laboratories in Europe and Shanghai as well as CE certificate for your full satisfaction.
    • TSTLP ese lightning air terminal only becomes active when electrical field intensity rises and TSTLP early streamer emission lightning air terminal presents no danger to the objects protected.
    • Reliable, Durable after withstanding different lightning strikes even in extreme climatic conditions
    • Maintenance-Free
    • ISO 9001:2015 Certified Manufacturing Operation.

    Durable Ese Air Terminal 120m Max Radius Protection Stainless Steel Metal Housing


    MP4 Video - TSTLP ESE Lightning Air Terminal VS Simple Air Terminal's Efficiency & Protection Range, check it @ https://drive.google.com/file/d/15oOYFghuehiJydeSsQ-efLOOQmyVGyQX/view?usp=sharing


    • Technical Table of SMT-ESE60 ese lightning air terminal

    Durable Ese Air Terminal 120m Max Radius Protection Stainless Steel Metal Housing


    SMT-ESE60 ese air terminal MECHANICAL Details
    Fixed on poleAs per International M20 Thread
    Down conductor connectionSpecific/suitable clamp
    PACKING
    Dimensions230*230*450 mm box/pc, 4pc in 480*500*500mm carton
    ContentsTSTLP® E.S.E. lightning air terminal Head, Nut, Hex key;
    Approx Gross Weight5,500g
    Environmental sustainability100 percent recyclable

    TSTLP Brand SMT-ESE60 ese lightning air terminal Certificates / Test Reports
    Patent CertificatePatent Nr 2013300191382
    Test STANDARDS
    NF C 17-102:2011 Annexe C
    UNE 21.186:2011 Paragraph C
    IEC 60060-1:2010 Part 1
    GB/T T16927.1-2011 Part 1
    Test Report Nr 2017013F0063
    (test at High-Voltage lab in Spain accredited by ENAC & ILAC)

    Test Report Nr 45800
    (test at High-Voltage lab in Romania, Europe accredited by Romania-RENAR & ILAC)
    Test Report Nr W13028
    (test at High-Voltage lab in Shanghai accredited by CAL & CMA)
    CE CertificateCertificate Nr WTS16030019S (Test Standard EN 60060-1:2010)

    • Early Streamer Emission Lightning Protection Calculation - Radius Protection Formular

    The protection radius of ESE lightning air terminal is related to its height (h) relative to the surface to be protected, to its efficiency and to the selected protection level

    for h ≥ 5 m;

    Durable Ese Air Terminal 120m Max Radius Protection Stainless Steel Metal Housing

    and

    Rp = h × Rp(5)/5 for 2 m ≤ h ≤ 5 m

    Rp (h) (m): is the protection radius at a given height h

    h (m) : is the height of the ese lightning air terminal tip over the horizontal plane through the furthest point of the object to be protected

    r (m) : Protection Levels (PL)

    PL 1: 20M PL 2: 30M

    PL 3: 45M

    PL 4: 60M

    Δ (m) = ΔT x 106

    Field experience has proved that Δ is equal to the efficiency obtained during the ese lightning air terminal evaluation tests in the high-voltage laboratory


    • Level 1 ~ level 4 Radius Protection Table of SMT-ESE60

    Durable Ese Air Terminal 120m Max Radius Protection Stainless Steel Metal Housing

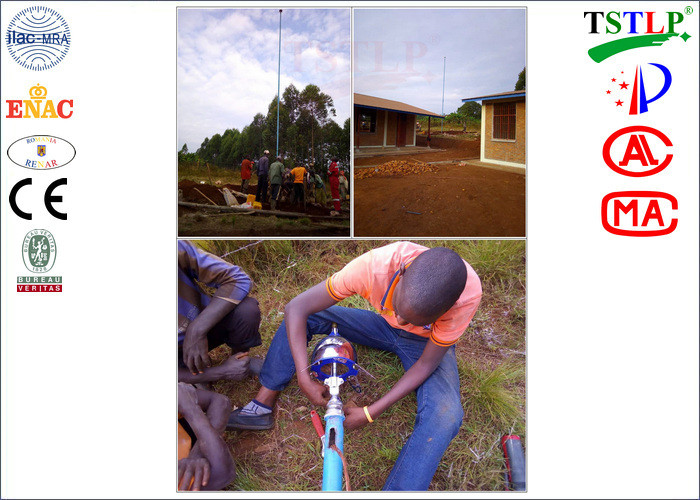

    • Real Ese lightning air terminal installation for primary school in Africa

    Durable Ese Air Terminal 120m Max Radius Protection Stainless Steel Metal Housing

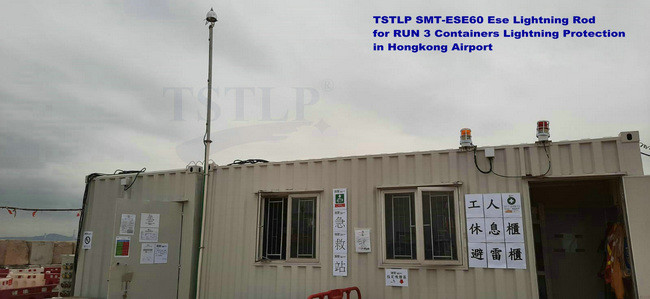

    • TSTLP Ese Lightning Air Terminal for CONTAINERS in Hong Kong Airport Exterior Lightning Protection

    Durable Ese Air Terminal 120m Max Radius Protection Stainless Steel Metal Housing


    Download PDF 2020 TSTLP ESE Air Terminal Catalog @ https://drive.google.com/file/d/1kEW-pWdJdlArVgfrHutq62k9HsVNcHq-/view?usp=sharing


    PDF Datasheet DOWNLOAD - TSTLP SMT-ESE60.pdf
