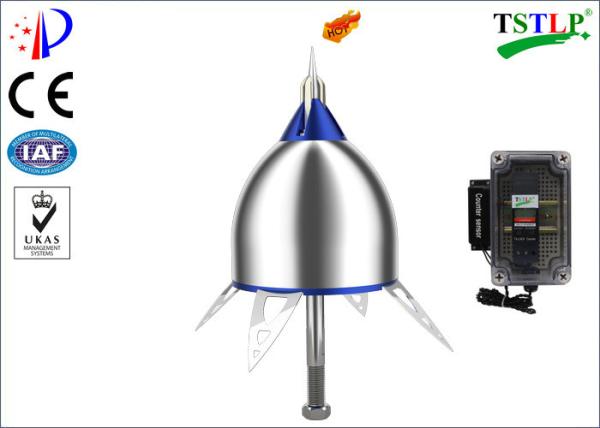

    Patented Ese Lightning Conductor 304SS Housing Material For Thatch Roofs

    Ask Lasest Price
    Brand Name : TSTLP
    Model Number : SMT-ESE50/LSC3
    Certification : Patent Right / CE Approved
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 1000 pcs/month
    • Product Details
    • Company Profile

    Patented Ese Lightning Conductor 304SS Housing Material For Thatch Roofs

    Patented ese lightning conductor for thatch roofs with competitive prices


    TSTLP Brand ESE lightning conductor which is designed and made as per NF C 17-102_2011 standard is without any external power supply but become self-active when electrical field intensity rises - lightning discharge likely.


    Patented Ese Lightning Conductor 304SS Housing Material For Thatch Roofs


    • Main Features

    Patented Ese Lightning Conductor 304SS Housing Material For Thatch Roofs


    • Technical Specifications

    Patented Ese Lightning Conductor 304SS Housing Material For Thatch Roofs


    • MECHANICAL Details of SMT-ESE50 ese lightning conductor
    Fixing on SS poleInternational M20 Thread
    Down conductor connectionSpecific clamp / Suitable Tape Clamp
    PACKING Details
    Packing Dimensions230*230*450 mm box/pc, 4pc in 480*490*490mm carton
    ContentsTSTLP® ese lightning conductor Head, Nut, Hex key;
    Approx Gross Weight5.0kg
    Environmental sustainability100% recyclable

    TSTLP SMT-ESE50 ese lightning conductor
    Patent CertificatePatent Nr 2013300191397
    CE CertificateCertificate Nr WTS16030019S (Test Standard EN 60060-1:2010)
    Product STANDARDS Compliance
    NF C 17-102:2011 Annexe C
    UNE 21.186:2011 Paragraph C
    IEC 60060-1:2010 Part 1
    GB/T T16927.1-2011 Part 1

    • PROTECTION RADIUS

    The protection radius of ese lightning conductor is related to its height (h) relative to the surface to be protected, to its efficiency and to the selected protection level

    for h ≥ 5 m;

    Patented Ese Lightning Conductor 304SS Housing Material For Thatch Roofs

    and

    Rp = h × Rp(5)/5 for 2 m ≤ h ≤ 5 m

    Rp (h) (m): is the protection radius at a given height h

    h (m) : is the height of the ESE lightning conductor tip over the horizontal plane through the furthest point of the object to be protected

    r (m) : 20 m for protection level I

    30m for protection level II

    45m for protection level III

    60m for protection level IV

    Δ (m) = ΔT x 106

    Field experience has proved that Δ is equal to the efficiency obtained during the ESE lightning conductor evaluation tests in the accredited lab


    • Radius Protection of SMT-ESE50

    Patented Ese Lightning Conductor 304SS Housing Material For Thatch Roofs


    • Radius Protection Diagram as per different protection levels according to NF C 17-102:2011 Standard

    Patented Ese Lightning Conductor 304SS Housing Material For Thatch Roofs


    Patented Ese Lightning Conductor 304SS Housing Material For Thatch Roofs


    • TSTLP lightning conductor for thatch roofs, villas strike protection

    Patented Ese Lightning Conductor 304SS Housing Material For Thatch Roofs


    PDF Datasheet Download - TSTLP SMT-ESE50.pdf
