Active lightning conductor for house lightning protection NFC17-102 compliant

• What's Active Lightning Conductor ?

lightning conductor generating a streamer earlier than a simple rod lightning conductor when compared in the same
conditions
NOTE – An active lightning conductor is made up of a striking point, an emission device, a fixing element and a
connection to the down conductors.

• Technical Data

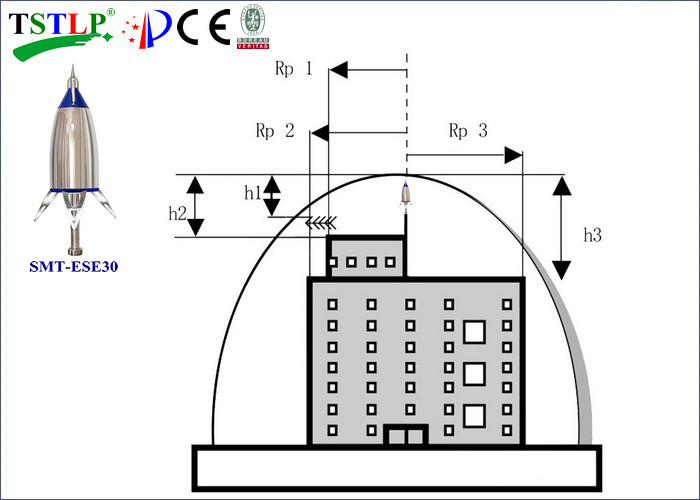

• RADIUS PROTECTION - Ese Lightning Conductor

The protection radius of TSTLP ese lightning conductor is related to its height (h) relative to the surface to be protected, to its efficiency and to the selected protection level

for h ≥ 5 m;

and

Rp = h × Rp(5)/5 for 2 m ≤ h ≤ 5 m

Rp (h) (m): is the protection radius at a given height h

h (m) : is the height of the active lightning conductor tip over the horizontal plane through the furthest point of the object to be protected

r (m) : 20 m for protection level I

30m for protection level II

45m for protection level III

60m for protection level IV

Δ (m) Δ = ΔT x 10⁶

Field experience has proved that Δ is equal to the efficiency obtained during the active lightning conductor evaluation tests

• Radius Protection Table of SMT-ESE30 Active lightning conductor

• TSTLP Active lightning conductor Protection of A Building

Installation procedures for TSTLP Active Lightning Conductor is governed by NF C 17-102 (UNE 21.186) and follows a series of simple rules catering for all types of structure

1. ESE Active Lightning Conductor
2. Elevation pole
3. Copper conductor
4. Copper clamp
5. Lightning counter
6. Test clamp
7. Earth clamp
8. Protection sheath
9. Inspection housing
10. Copper earthing
11. Rod to conductor clamp
12. Earth rod

• TSTLP Active lightning conductor for house, high-volatge lines... protection

PDF Datasheet Download - TSTLP SMT-ESE30.pdf

Tag: active lightning conductor, lightning conductor for house
