    Single Port Ethernet Surge Protection Devices 5v - 1000MBit Vs Cat6 Surge Arrester

    Ask Lasest Price
    Model Number : TS-RJ45/5/8(1000)
    Brand Name : TSTLP
    Certification : CE Compliance
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    Single Port Ethernet Surge Protection Devices 5v - 1000MBit Vs Cat6 Surge Arrester

    Single Port RJ45 Gigabit Ethernet Surge Protector 5v -1000MBit/s - Cat6 Lightning Arrester

    ( 1 / 8 / 16 / 24 channels 100 MBits/s - Cat5 Ethernet Surge Arrester is also available to make as request).


    TS-RJ45/5/8(1000) ethernet surge protector which complies with IEC 61643-21 is applied to Gigabit Ethernet ATM, Voip Networks and computer network equipment ... (e.g. Telecommunication, Server, Routers,Computers...) network equipment from interruption caused by surge current.


    Single Port Ethernet Surge Protection Devices 5v - 1000MBit Vs Cat6 Surge Arrester


    Technical Specification P1

    Model No.TS-RJ45/5/8(1000)
    Nominal voltageUn5V-
    Rated voltage (max. continuous voltage)Uc6V-
    Nominal CurrentIN1A
    Nominal discharge current (8/20)In2.5kA (line-line)
    2.5kA (line-PG)
    Max. discharge current (8/20)Imax10 kA(total)
    Voltage protection level at InUp≤15V (line-line)
    ≤150V (line-PG)
    capacitanceC≤30pF (line-line)
    ≤25pF (line-PG)
    Max. data transmission ratesVs1000Mbits/s
    Operating temperature range-40°C...+80°C

    Technical Specification P2

    Single Port Ethernet Surge Protection Devices 5v - 1000MBit Vs Cat6 Surge Arrester

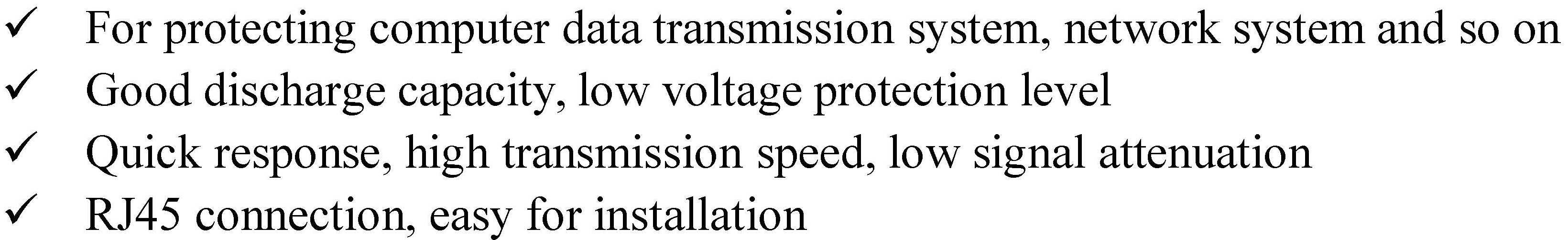

    • Features

    Single Port Ethernet Surge Protection Devices 5v - 1000MBit Vs Cat6 Surge Arrester


    • Installation Instruction of ethernet Surge Protection Devices
    1. This cat6 lightning arrester is connected in series to the protected device.
    2. Mount the ethernet surge protector on 35 mm DIN rail.
    3. The out terminal s/b connected to the protected devices.
    4. The ethernet surge protector's earthing terminal must be connected to nearby earthing BusBar or the metal earthing enclosure of protected device.
    5. Regularly inspect the operating status, especially after lightning.Once the communication is off, electrician should check/replace the ethernet surge arrester.
    • Installation Diagram

    Single Port Ethernet Surge Protection Devices 5v - 1000MBit Vs Cat6 Surge Arrester


    PDF Catalog Download - TS-RJ45-5-8 (1000) 1 Port G...


    PDF Catalog Download - TS-8-16-24RJ45-5-8 1000MBit...


    PDF Catalog Download - TS-RJ45POE48 1000Mbits-s Ne...


    Tag: ethernet surge arrester, cat6 surge arrester, gigabit ethernet surge protector
