    24 Ports RJ45 Network Lightning Surge Protector For Network Switches Protection

    Ask Lasest Price
    Model Number : TS-24RJ45/5/8
    Certification : CE Compliance
    Brand Name : TSTLP
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    24 Ports RJ45 Network Lightning Surge Protector For Network Switches Protection

    24 ports RJ45 network surge protector for network switches protection


    24 Ports RJ45 Network Lightning Surge Protector For Network Switches Protection


    TS-24RJ45/5/8 (Module design for standard 19"distribution cabinet.) 16 / 24 ports RJ45 network surge protector for network switches are designed as per IEC 61643-21; GB 18802.21; YD/T 1542. for protecting ethernet 100BaseT/TX/T4,ATM 155MBit/s,100VG-Any-LAN,CDDI,10Base T(IEEE 802.3),Token Ring(IEEE 802.5)etc. (e.g. Telecom-communication,server, router,computer, and so on)... network equipment from interruption caused by surge current.


    • Technical Specfication S1
    ModelTS-24RJ45/5/8
    Un5V-
    Uc6V-
    4.2V~
    In300A (line-line)
    300A (line-PG)
    Imax400A (line-line)
    400A (line-PG)
    Up≤50V (line-line)
    ≤50V (line-PG)
    Up≤ 13V (line-line)
    ≤ 13V (line-PG)
    C≤ 35pF (line-line)
    ≤50pF (line-PG)
    tA≤1ns (line-line)
    ≤1ns (line-PG)
    fG165Mbits/s
    Vs155Mbits/s
    Operating temperature range-40°C...+80°C
    Relative humidity≤95% (25°C)

    Technical Specfication S2

    24 Ports RJ45 Network Lightning Surge Protector For Network Switches Protection

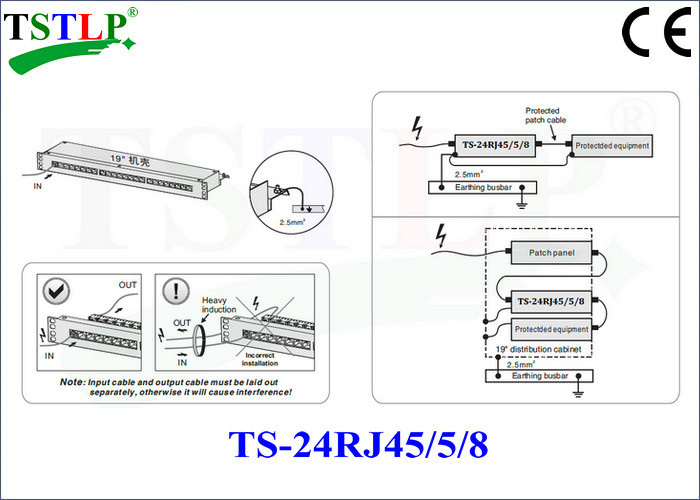

    • Installation Diagram

    24 Ports RJ45 Network Lightning Surge Protector For Network Switches Protection


    PDF Catalog Download - TS-8-16-24RJ45-5-8 SPD.pdf


    PDF Catalog Download - TS-RJ45-5-8 & TS-RJ45-24-8 ...


    PDF Catalog Download - TS-8-16-24RJ45-5-8 1000MBit...


    PDF Catalog Download - TS-RJ45-5-8(1000) Network S...


    Tag: network surge protector, surge protector for network switches
