    75Ω Television Surge Protector , TV / Satellite Data Surge Protection Device

    Ask Lasest Price
    Model Number : TS-CSTV24
    Brand Name : TSTLP
    Certification : CE Compliance
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    75Ω Television Surge Protector , TV / Satellite Data Surge Protection Device

    75Ω television surge protector - recommended surge protector for TV & satellite


    Recommended surge protector for TV TS-CTV24, designed as per IEC 61643-2; GB 18802.21; YD/T 1542, is applied in 75Ω satellite and cable TV system surge protection


    • Technical Data S1 of TS-CSTV24 television surge protector
    ModelTS-CSTV24
    Rated voltage (max. continuous voltage)Uc24V-
    Nominal currentIL2A
    Lightning Impulse Current (10/350)Iimp0.5KA
    Nominal discharge current (8/20)In2.5KA
    Voltage protection level at InUp≤300V (line-shield)
    Voltage protection level at 1kV/msUp≤60V (line-shield)
    Frequency rangeF5-3000MHz
    Insertion lossaE1.2dB (5-862MHz)
    1.4dB (862-2400MHz) 2dB (2400-3000MHz)
    Return loss (input/output)aR≥ 14dB (5-47MHz)
    ≥ 18dB (47-3000MHz)
    Shield attenuationaS≥ 85dB (5-300MHz) ≥ 80dB (300-470MHz)
    ≥ 75dB (470-1000MHz) ≥ 55dB (1000-3000MHz)
    Surge impedanceZ75Ω
    Response timeR≤ 1ns (line-shield)

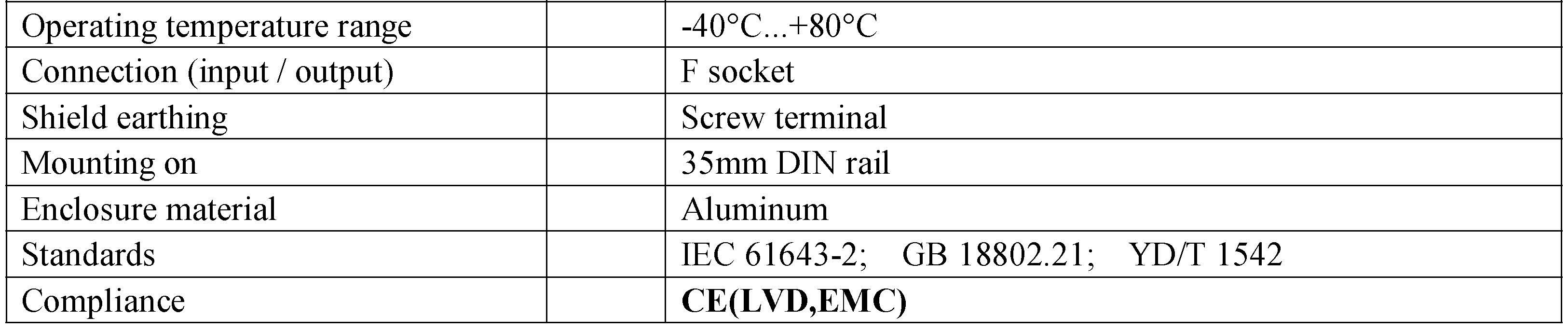

    Technical Data S2

    75Ω Television Surge Protector , TV / Satellite Data Surge Protection Device


    • Main Features
    1. Specially designed surge protector for TV Good discharge capacity, low voltage protection level
    2. Multiple protection, quick response, no interruption
    3. F socket connection for easy installation
    • Installation Diagram

    75Ω Television Surge Protector , TV / Satellite Data Surge Protection Device


    PDF Catalog Download - TS-CSTV24 TV SPD.pdf


    Tag: television surge protector, surge protector for TV, recommended surge protector for TV
