    3000MHz / 3G Antenna Surge Protector For Coaxial / Cell Sites / Antenna Systems

    Ask Lasest Price
    Model Number : TS-G3000N
    Brand Name : TSTLP
    Certification : CE Compliance
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    3000MHz / 3G Antenna Surge Protector For Coaxial / Cell Sites / Antenna Systems

    3000MHz / 3G antenna surge protector for coaxial / cell sites / antenna systems


    3000MHz / 3G Antenna Surge Protector For Coaxial / Cell Sites / Antenna Systems

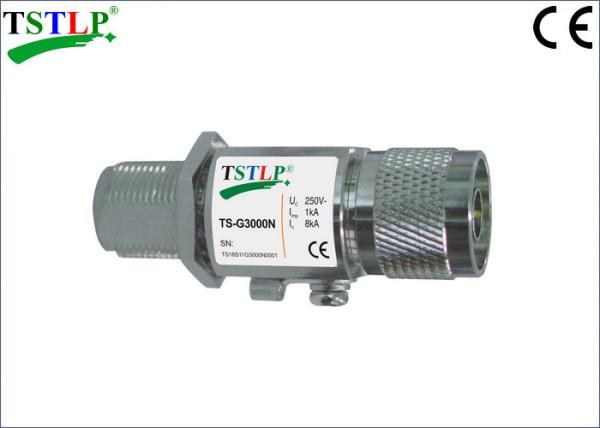

    TSTLP TS-3000N 3GHz (3000 MHz) antenna surge protector,designed as per IEC 61643-21 is for protecting 50Ω coaxial feeding system at LPZ0B-1 protection.


    • Technical Data P1
    ModelTS-G3000N
    Rated voltage (max. continuous voltage)250V
    Nominal current3.5A
    Lightning impulse current(10/350)1kA
    Nominal discharge current (8/20)8kA
    Max.discharge current (8/20)20kA
    Voltage protection level at Imax≤750V
    Frequency range3000MHZ

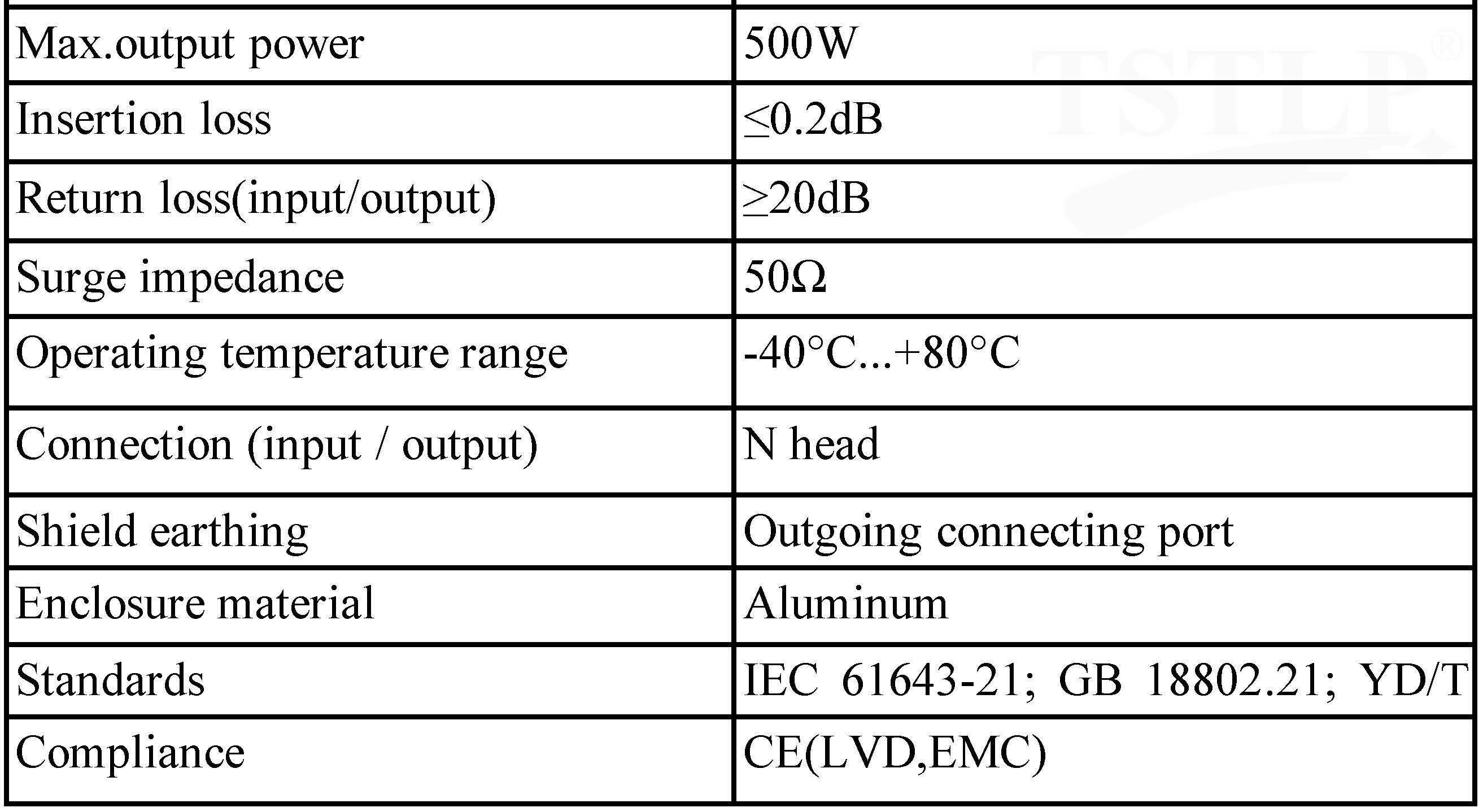

    Technical Data P2

    3000MHz / 3G Antenna Surge Protector For Coaxial / Cell Sites / Antenna Systems


    • Installation Instruction
    1. This antenna surge protector is connected in series to the protected device.
    2. The out terminal should be connected to the protected devices.
    3. Earthing terminal of the antenna surge protector must be connected to nearby earthing BusBar or the metal earthing enclosure of protected device.
    4. After above, ensure the circuit is functioning.

    Regularly inspect the operating status, especially after lightning. Once the communication is off, electrician should check/replace the antenna surge protector.


    • Installation Diagram

    3000MHz / 3G Antenna Surge Protector For Coaxial / Cell Sites / Antenna Systems


    PDF Catalog Download - TS-Antenna SPD.pdf
