120kA Type 1 & 2 surge protection device for electrical switchboards

( In(8/20) from 1kA - 200kA & Iimp (10/350) from 1kA ~ 50kA of Surge Protection Devices available to do with different housing & components as requested)

TS-385BC25 Type 1 & 2 Surge Protection Device, designed according to IEC 61643-11; GB 18802.1;YD/T 1235.1. is designed to protect low voltage devices from surge damages, specially designed for TN-S or TT system. Mainly used in power supply system such as power distribution-room,distribution-cabinet,electrical switchboards and other important power supply system.

• Technical Data

Technical Data S2

• Main Character

1. Combined Type 1 & 2 Surge Protection for 3-phase TN /TT system
2. Adopt hermetical GDT technology, high follow current extinguish capacity
3. Extremely low voltage protection
4. Double terminals for parallel or series (V-shape) connection
5. Multifunctional connection for conductor and busbars

• INSTALLATION STEPS

1. Mount the Type 1 & 2 Surge Protection Device on 35 mm DIN rail.
2. Connect conductors, the cross-sectional area of cable (L-N) must be larger than 16mm2 , and the earthing cable(N-PE) larger than 25mm . The withstand voltage value of cable is not smaller than AC500V; ensure wiring reliable.
3. After above, switch on the power supply and turn on the circuit breaker, test the surge protection device does not fault appear, this indicates the unit is operating normally.

Regularly inspect the operating status, especially after lightning. Once the fuse upstream break, or the surge protection device’s fault appear, electrician should check/replace the surge protection device

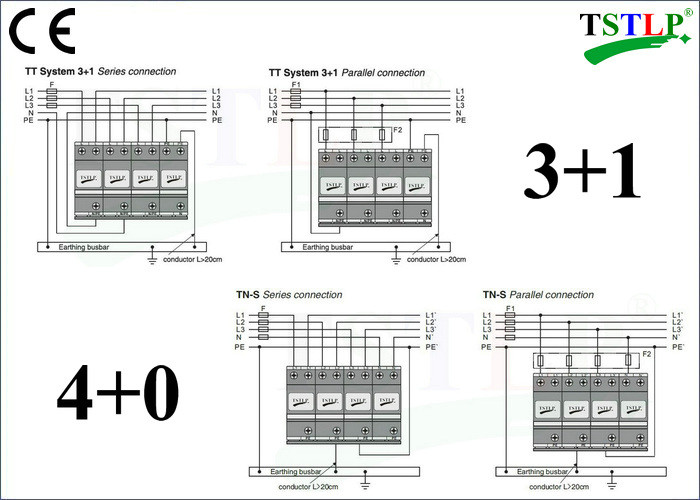

• Installation Diagram

• Surge Protection Device Definition ( What Is Surge Protection Device ): Device for protecting electrical/electronic equipment from transient voltage damage.

PDF Catalog Download TS-385BC25 T1+2 SPD 20200918...

PDF Catalog Download TS-255BC25 T1+2 SPD 20200918....

Tag: type 1 & 2 surge protection, surge protection device for electrical switchboards
