    Class C 20ka Surge Protector , 1 Mod Din Rail Type 2 Surge Protector

    Ask Lasest Price
    Model Number : TS-385M20RM
    Certification : CE Compliance
    Brand Name : TSTLP
    Price : Negotiable if good quantity
    Delivery Time : Around 7 working days upon receipt of payment
    Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
    Supply Ability : 2000 sets/month
    • Product Details
    • Company Profile

    Class C 20ka Surge Protector , 1 Mod Din Rail Type 2 Surge Protector

    Class C 20ka surge protection device - type 2 surge protection device types


    TSTLP Type 2 surge protection device complying to the standard IEC61643-11, is for installation at LPZ 0B -1 or higher and applied in pulggable surge protection devices types 2 for power supply system protection


    • Type 2 Surge Protection Device (Types) Technical Specification
    Model No.TS-385M20RM
    Uc385V~
    In20,000 A
    Imax40,000 A
    Up≤ 1,800V
    Up≤ 1,350V

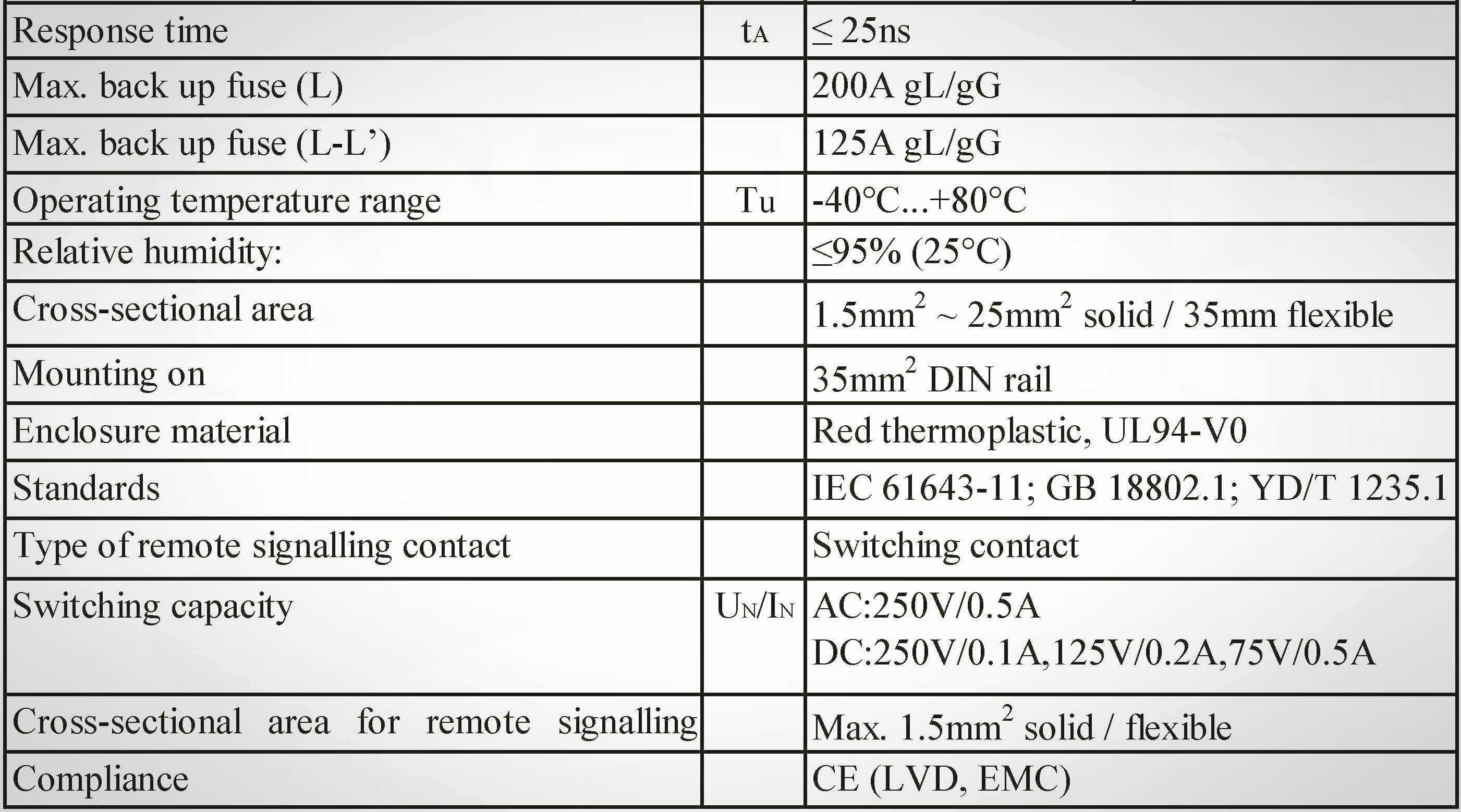

    Technical Specification Part 2

    Class C 20ka Surge Protector , 1 Mod Din Rail Type 2 Surge Protector


    • Main Character
    1. 20kA surge protector, standard single chip structure, pluggable
    2. Consist of varistor and thermal disconnection device
    3. High discharge capacity, quick response
    4. Double thermal disconnection devices - more reliable protection
    5. Green window will change (to Red) when fault occurs, meanwhile, provide remote alarm terminal

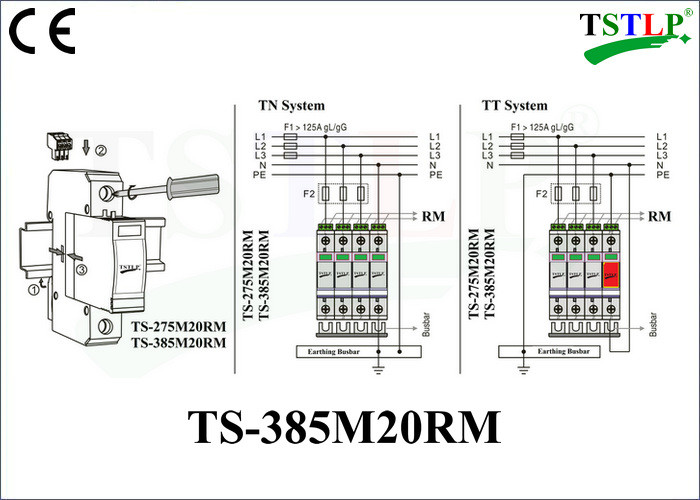

    • INSTALLATION INSTRUCTION

    Class C 20ka Surge Protector , 1 Mod Din Rail Type 2 Surge Protector


    PDF Catalog Download - TS-385M30-20-10RM T2 SPD.pd...


    PDF Catalog Download - TS-275M30-20-10RM T2 SPD.pd...
